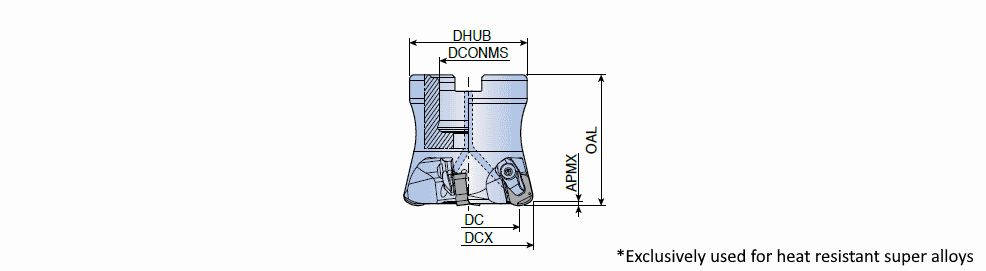

TFMBN-R-09CH : High Feed mills with Dimple negative Ceramic inserts of four cutting edges for high speed machining of super alloys

Designation	Tool sty	DCX	CICT	DC	DCONMS	DHUB	OAL	APMX	Air hole	Arbor		Mtg. Ref	S1	D3	Rd	R/L	KAPR	PD	Insert	Pocket	ClssID	MIID		CCTMS	CCFMS	FF/RN	IIC	LTA	ZEFF	ZEFP	ZNP	GICAT
TFMBN 440-16R-09CH	FACE MILL ~	40.00	4	29.40	16.00	38.00	40.00	1.50	O	A	0.20	SH M8x30	9.00~	0.00~	0.60~	~	1.0~	RF ~	CSF-BN09 ~	BNGX09 ~	71E01A05B627B ~	BNGX 0904 CH-E04	Air hole ~	FDA ~	02 ~	FF ~	IS$$278276755488288 ~	40.00~	4~	4~	4~	6316346
TFMBN 350-22R-09CH	FACE MILL ~	50.00	3	39.40	22.00	45.00	40.00	1.50	O	A	0.50	SH M10x30	9.00~	0.00~	0.60~	~	1.0~	C ~	CSF-BN09 ~	BNGX09 ~	71E01A05B627B ~	BNGX 0904 CH-E04	Air hole ~	FDA ~	02 ~	FF ~	IS$$278276755488288 ~	40.00~	3~	3~	3~	6302571
TFMBN 550-22R-09CH	FACE MILL ~	50.00	5	39.40	22.00	45.00	40.00	1.50	O	A	0.40	SH M10x30	9.00~	0.00~	0.50~	~	1.0~	RF ~	CSF-BN09 ~	BNGX09 ~	71E01A05B627B ~	BNGX 0904 CH-E04	Air hole ~	FDA ~	02 ~	FF ~	IS$$278276755488288 ~	40.00~	5~	5~	5~	6303678

Use only air(coolant is prohibited)
Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
