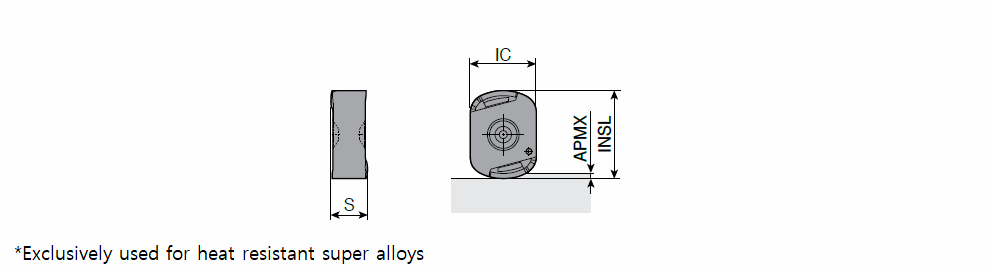

BNGX 09 : Negative ground Ceramic Dimple inserts for High feed machining of super alloys with 4 cutting edges & chip former

Designation	INSL	IC	S	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	CEDC	SC	Pocket	ESP	ClssID	GRDMFG	IIC	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
BNGX 0904 CH-E04	12.00	9.00	5.00	1.50	9.00~	0.50	1.00	0.350	0.150	M10 ~	CSF-BN09 ~	4~	B ~	BNGX 09 ~	C50 ~	71DDA089C8D1E ~	TC3030~	IS$$278276755488288 ~	0~	6302575		1		TC3030

E04: Honing 0.04-0.05mm
Recommended cutting speed Vc=600°1,200 m/min
