TaeguTec Cutting Tools - Metal Working Tools - Turning -

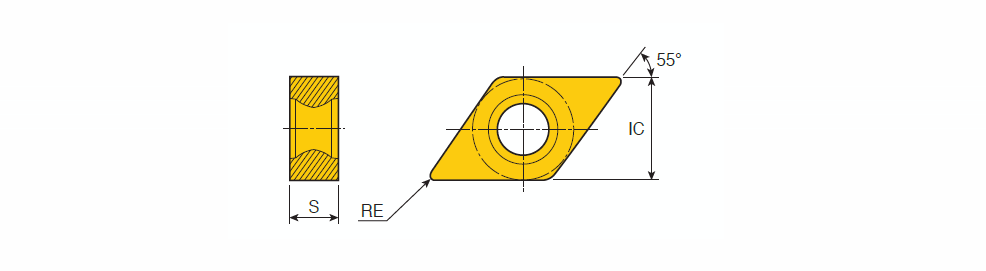

DNGX-SM-F 08 (RHINO-M) : Mini size negative 55° Rhombic Ground inserts with sharp cutting edges of general purpose at Swiss automatic lathes

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
DNGX 080301M SM-F	7.00	3.18	0.10	8.55~	SM-F ~	55~	0.00~	0.10	1.00	0.02	0.10	4~	P ~	~	D ~	71DD68D301C30 ~	RHINO-M-TURN ~	PVD ~	TT4430~	2~	ISO$DN0803012NA$$01 ~	.220M- ~	DNGX ~	Y ~	8 ~	6230967	2	TT9020 TT4430
DNGX 080302M SM-F	7.00	3.18	0.20	8.55~	SM-F ~	55~	0.00~	0.20	1.20	0.02	0.12	4~	P ~	~	D ~	71DD68D301C30 ~	RHINO-M-TURN ~	PVD ~	TT4430~	2~	ISO$DN0803022NA$$02 ~	.220.5 ~	DNGX ~	Y ~	8 ~	6335247	2	TT9020 TT4430
DNGX 080304M SM-F	7.00	3.18	0.40	8.55~	SM-F ~	55~	0.00~	0.20	1.50	0.02	0.15	4~	P ~	~	D ~	71DD68D301C30 ~	RHINO-M-TURN ~	PVD ~	TT4430~	2~	ISO$DN0803042NA$$04 ~	.221M- ~	DNGX ~	Y ~	8 ~	6230968	2	TT9020 TT4430

M: Corner radius minus tolerance (ex : 02M is 0.18)
