TaeguTec Cutting Tools - Metal Working Tools - Turning -

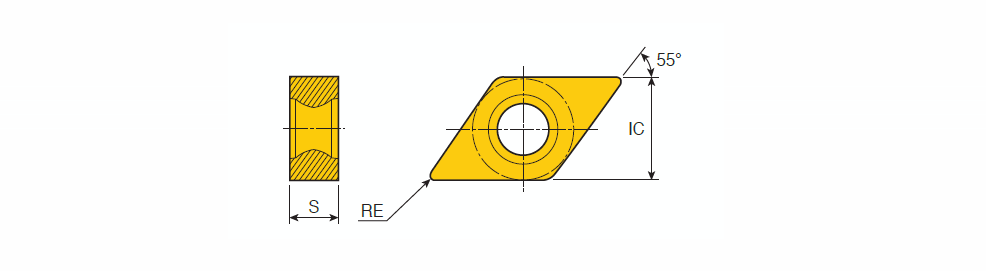

DNMX-FGP 08 (RHINO-M) : Mini size negative 55° Rhombic inserts for finishing to semi-finish machining of steels in small components at Swiss automatic lathes

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
DNMX 080304 FGP	7.00	3.18	0.40	8.55~	FGP ~	55~	0.00~	0.30	2.00	0.05	0.25	4~	~	U ~	D ~	71DD68D301C30 ~	RHINO-M-TURN ~	Cermet+PVD ~	8115B ~	2~	ISO$DN0803042NA$$04 ~	.221FG ~	DNMX ~	Y ~	8 ~	6330391		5		TT8125B TT5080 TT8115B TT8115B PV3010
DNMX 080308 FGP	7.00	3.18	0.80	8.55~	FGP ~	55~	0.00~	0.40	2.00	0.08	0.25	4~	~	U ~	D ~	71DD68D301C30 ~	RHINO-M-TURN ~	Cermet+PVD ~	8115B ~	2~	ISO$DN0803082NA$$08 ~	.222FG ~	DNMX ~	Y ~	8 ~	6211196		5		TT3020 TT8125B TT5080 TT8115B PV3010
