TaeguTec Cutting Tools - Metal Working Tools - Turning -

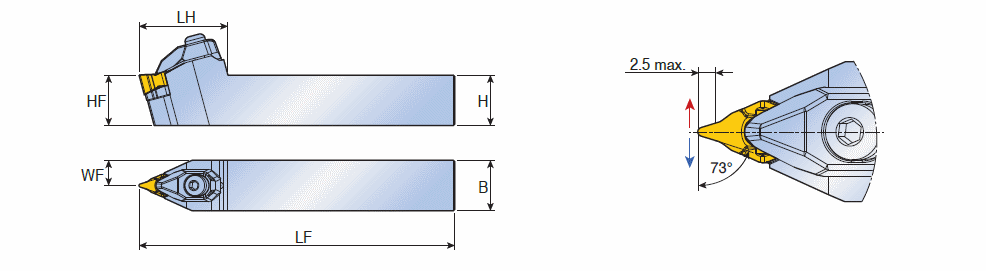

TZXNN (POS-S)... : T-holders with unique clamping, 72.5° approach angle and ZNMV Y-BF positive 4 corner inserts

Designation	H	HF	B	LF	LH	WF	IC	S	Kr	KAPR	CL	Tool typ	R/L	ClssID	MIID	LTA	IIC	GICAT	GIREM	giic	GICODE
TZXNN 2525 M1410	25.0	25.0	25.0	150.00	44.0	12.50	10.50~	10.00~	70~	73.0~	T-HOLDER ~	SQUARE ~	~	71E01A0E85121 ~	ZNMV 141008Y-BF	54.00~	IS$$748531464643187 ~	6325259		0
TZXNN 3232 P1410	32.0	32.0	32.0	170.00	44.0	16.00	10.50~	10.00~	70~	73.0~	T-HOLDER ~	SQUARE ~	~	71E01A0E85121 ~	ZNMV 141008Y-BF	54.00~	IS$$748531464643187 ~	6326612		0
