TaeguTec Cutting Tools - Metal Working Tools - Turning -

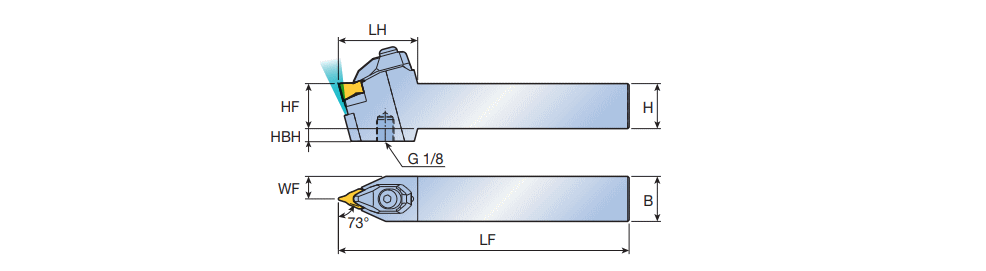

TZXNN-TB (POS-S)... : T-holders for high pressure coolant with 72.5° approach angle and ZNMV Y-BF positive 4 corner inserts

Designation	H	HF	B	LF	LH	WF	HBH	IC	S	Kr	KAPR	CL	Tool typ	R/L	ClssID	MIID	LTA	IIC	GICAT	GIREM	giic	GICODE
TZXNN 2525 M1410-TB	25.0	25.0	25.0	150.00	44.0	12.50	7.0	10.50~	10.00~	70~	73.0~	T-HOLDER ~	SQUARE ~	~	71E01A0E85121 ~	ZNMV 141008Y-BF	54.00~	IS$$748531464643187 ~	6313191		0
TZXNN 3232 P1410-TB	32.0	32.0	32.0	170.00	44.0	16.00	-	10.50~	10.00~	70~	73.0~	T-HOLDER ~	SQUARE ~	~	71E01A0E85121 ~	ZNMV 141008Y-BF	54.00~	IS$$748531464643187 ~	6326615		0
