TaeguTec Cutting Tools - Metal Working Tools - Turning -

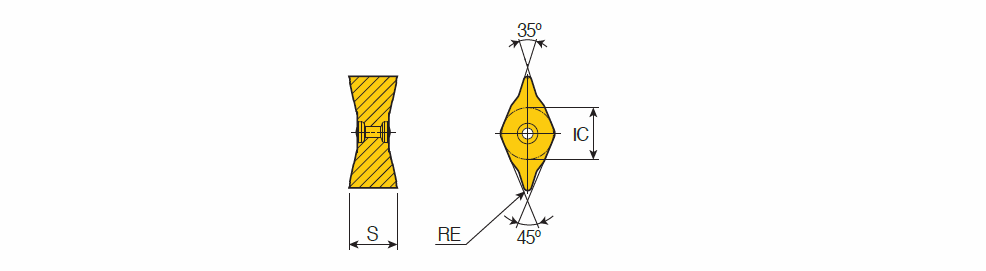

ZNMV 141008Y-BF : Double-sided positive 4 corner inserts with 35° corner angle for finish cut of all directional & high feed steel turning

Designation	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
ZNMV 141008Y-BF	10.50	10.00	0.80	BF ~	35~	0.00~	0.25	1.50	0.20	0.50	4~	~	U ~	14.84~	Z ~	71DDA089C8D1E ~	CVD ~	8105B ~	2~	ISO$ZN1410082NB$$08 ~	3.36.3 ~	ZNMV ~	Y ~	14 ~	6330933		3		TT8125B TT8115B TT8105B

ap & ft is backward turning conditions
Forward turning conditions: ap(min)=0.25, ap(max)=1.0, ft(min)=0.20, ft(max)=0.35
