TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

TSG-HF (H-FEED) : T-CLAMP CBN inserts for High Feed turning of hardened steels

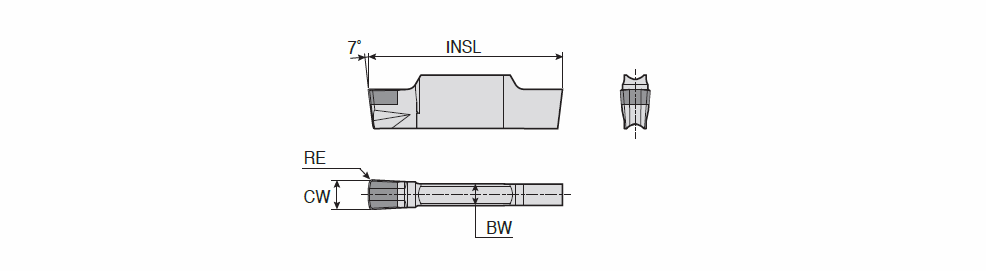

Designation	SSC	CW	RE	BW	INSL	ap (min)	ap (max)	ft (min)	ft (max)	CB1	W+-toler	R/L	ClssID	CEDC	COATP	CBMD	GRDMFG	IIC	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
TSG 3.0-0.3-HF	3	3.00	0.30	2.20	20.00	0.08	0.12	0.40	0.80	~	0.00~	N ~	71DDA089C8D1E ~	1~	CBN ~	G ~	TB2015~	IS$$403207968425652 ~	6314118		1		TB2015
TSG 5.0-0.3-HF	5	5.00	0.30	4.00	25.00	0.08	0.12	0.40	1.20	~	0.00~	N ~	71DDA089C8D1E ~	1~	CBN ~	G ~	TB2015~	IS$$191162763178800 ~	6314119		1		TB2015

For parting and grooving range, click on "More Info".
