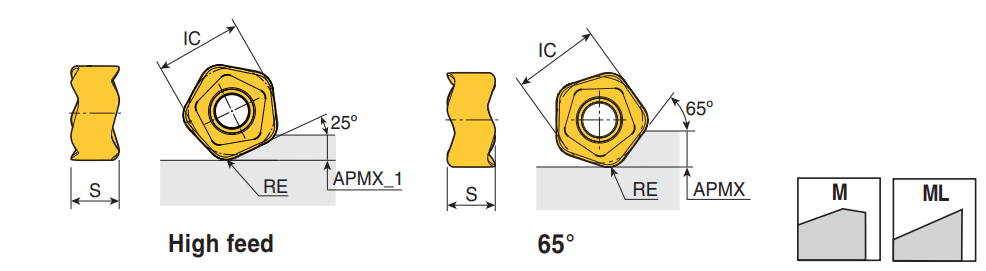

PTKU 10-M/ML : High positive double-sided inserts with economical 10 cutting edges for 65° Face mills and High Feed mills

Designation	IC	S	APMX	RE	S1	ap (min)	ap (max)	fz (max)	fz (min)	APMX_1	ap.min_1	ap.max_1	fz.max_1	fz.min_1	SF	Insert	CEDC	SC	Pocket	ESP	ClssID	apmax MF	CB	GRDMFG	IIC	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
PTKU 1006R-M	14.19	7.71	6.50	3.00	10.00~	1.50	5.00	0.250	0.100	3.00	0.30	2.00	2.000	0.300	M8 ~	C10M-PT10 ~	10~	PENTA ~	PTKU 10 ~	U60 ~	71DD68D80B094 ~	6.50~	M ~	8525B ~	IS$$663860748679252 ~	0~	6308003		4		TT8080 TT8525B TT9080 TT2510
PTKU 1006R-ML	14.19	7.71	6.50	3.00	10.00~	1.50	5.00	0.250	0.100	3.00	0.30	2.00	2.000	0.300	M8 ~	C10M-PT10 ~	10~	PENTA ~	PTKU 10 ~	U60 ~	71DD68D80B094 ~	6.50~	M ~	TT3535~	IS$$663860748679252 ~	0~	6252120		1		TT3535

For high feed milling,please refer to the parameters below
-APMX_1
-ap.min_1, ap.max_1
-fz.max_1, fz.min_1
