TaeguTec Cutting Tools - Metal Working Tools - Turning -

SFXCN (TURN-S) : Screw type holders with FCMX trigonal positive inserts & internal coolant for bi-directional high feed turning

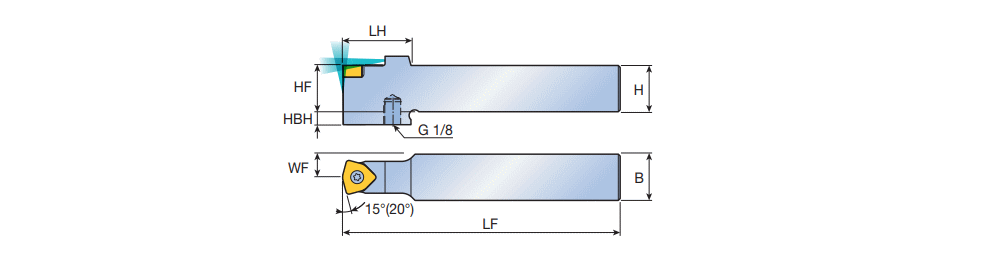

Designation	H	HF	B	LF	LH	WF	ClssID	MIID	IC	S	Kr	KAPR	CL	Tool typ	R/L	IIC	GICAT	GIREM	giic	GICODE
SFXCN 2525 M1006	25.0	25.0	25.0	150.00	37.0	12.50	71E01A0E85121 ~	FCMX 100616-HFG	15.45~	6.50~	0~	15.0~	SCREW ~	SQUARE ~	N ~	IS$$79945147118520 ~	6324819		0
SFXCN 3232 P1006	32.0	32.0	32.0	170.00	37.0	16.00	71E01A0E85121 ~	FCMX 100616-HFG	15.45~	6.50~	0~	15.0~	SCREW ~	SQUARE ~	N ~	IS$$79945147118520 ~	6321576		0
