TOP-2XD-CA (DIA 51-80) : Large diameter drills with cartridges, square inserts and setting plates for diameter adjustment in drilling depth of 2xD

Drilling depth: 2xdiameter

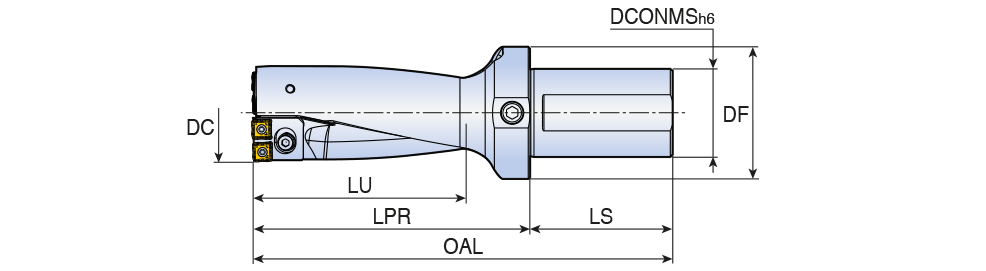

Designation	Tool sty	DCN	DCX	DCONMS	DF	LU	LPR	LS	OAL	S1		Machines	Zeff	Shank	ClssID	MIID	CICT	DC	ULDR	CCFMS	CCTMS	d Range	IIC	LTA	GICAT
TOP 2051-55-50T2-09CA	INSERT TYPE ~	51.00	55.00	50.00	64.00	110.0	143.00	80.0	223.00	9.00~	~	~	1~	W ~	71E01A0608FE4 ~	SOMT 09T308 DP	4~	51.00~	2.00~	11 ~	ZYL ~	51-55 ~	IS$$1047741021497728 ~	143.00~	6176666
TOP 2056-60-50T2-11CA	INSERT TYPE ~	56.00	60.00	50.00	64.00	120.0	156.00	80.0	236.00	11.00~	~	~	1~	W ~	71E01A0608FE4 ~	SOMT 11T308 DP	4~	56.00~	2.00~	11 ~	ZYL ~	56-60 ~	IS$$955440375131362 ~	156.00~	6314678
TOP 2061-65-50T2-11CA	INSERT TYPE ~	61.00	65.00	50.00	69.00	130.0	169.00	80.0	249.00	11.00~	~	~	1~	W ~	71E01A0608FE4 ~	SOMT 11T308 DP	4~	61.00~	2.00~	11 ~	ZYL ~	61-65 ~	IS$$955440375131362 ~	169.00~	6314679
TOP 2066-70-50T2-11CA	INSERT TYPE ~	66.00	70.00	50.00	69.00	140.0	182.00	80.0	262.00	11.00~	~	~	1~	W ~	71E01A0608FE4 ~	SOMT 11T308 DP	4~	66.00~	2.00~	11 ~	ZYL ~	66-70 ~	IS$$955440375131362 ~	182.00~	6314680
TOP 2071-75-50T2-13CA	INSERT TYPE ~	71.00	75.00	50.00	74.00	150.0	195.00	80.0	275.00	13.00~	~	~	1~	W ~	71E01A0608FE4 ~	SOMT 130408 DP	4~	71.00~	2.00~	11 ~	ZYL ~	71-75 ~	IS$$993706682674101 ~	195.00~	6314681
TOP 2076-80-50T2-13CA	INSERT TYPE ~	76.00	80.00	50.00	74.00	160.0	208.00	80.0	288.00	13.00~	~	~	1~	W ~	71E01A0608FE4 ~	SOMT 130408 DP	4~	76.00~	2.00~	11 ~	ZYL ~	76-80 ~	IS$$993706682674101 ~	208.00~	6314682
