TOP-3XD-CA (DIA 51-80) : Large diameter drills with cartridges, square inserts and setting plates for diameter adjustment in drilling depth of 3xD

Drilling depth: 3xdiameter

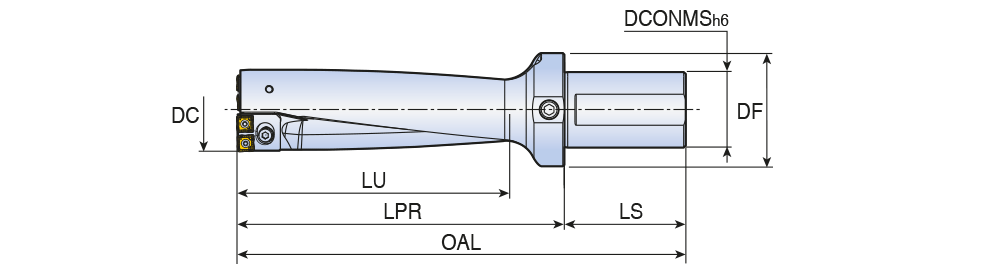

Designation	Tool sty	DCN	DCX	DCONMS	DF	LU	LPR	LS	OAL	S1		Machines	Zeff	Shank	ClssID	MIID	CICT	DC	ULDR	CCFMS	CCTMS	d Range	IIC	LTA	GICAT
TOP 3051-55-50T2-09CA	INSERT TYPE ~	51.00	55.00	50.00	64.00	165.0	198.00	80.0	278.00	9.00~	~	~	1~	W ~	71E01A0608FE4 ~	SOMT 09T308 DP	4~	51.00~	3.00~	11 ~	ZYL ~	51-55 ~	IS$$1047741021497728 ~	198.00~	6134806
TOP 3056-60-50T2-11CA	INSERT TYPE ~	56.00	60.00	50.00	64.00	180.0	216.00	80.0	296.00	11.00~	~	~	1~	W ~	71E01A0608FE4 ~	SOMT 11T308 DP	4~	56.00~	3.00~	11 ~	ZYL ~	56-60 ~	IS$$955440375131362 ~	216.00~	6132307
TOP 3061-65-50T2-11CA	INSERT TYPE ~	61.00	65.00	50.00	69.00	195.0	234.00	80.0	314.00	11.00~	~	~	1~	W ~	71E01A0608FE4 ~	SOMT 11T308 DP	4~	61.00~	3.00~	11 ~	ZYL ~	61-65 ~	IS$$955440375131362 ~	234.00~	6133591
TOP 3066-70-50T2-11CA	INSERT TYPE ~	66.00	70.00	50.00	69.00	210.0	252.00	80.0	332.00	11.00~	~	~	1~	W ~	71E01A0608FE4 ~	SOMT 11T308 DP	4~	66.00~	3.00~	11 ~	ZYL ~	66-70 ~	IS$$955440375131362 ~	252.00~	6134807
TOP 3071-75-50T2-13CA	INSERT TYPE ~	71.00	75.00	50.00	74.00	225.0	270.00	80.0	350.00	13.00~	~	~	1~	W ~	71E01A0608FE4 ~	SOMT 130408 DP	4~	71.00~	3.00~	11 ~	ZYL ~	71-75 ~	IS$$993706682674101 ~	270.00~	6134808
TOP 3076-80-50T2-13CA	INSERT TYPE ~	76.00	80.00	50.00	74.00	240.0	288.00	80.0	368.00	13.00~	~	~	1~	W ~	71E01A0608FE4 ~	SOMT 130408 DP	4~	76.00~	3.00~	11 ~	ZYL ~	76-80 ~	IS$$993706682674101 ~	288.00~	6131895
