TOP-4XD-CA (DIA 51-80) : Large diameter drills with cartridges, square inserts and setting plates for diameter adjustment in drilling depth of 4xD

Drilling depth: 4xdiameter

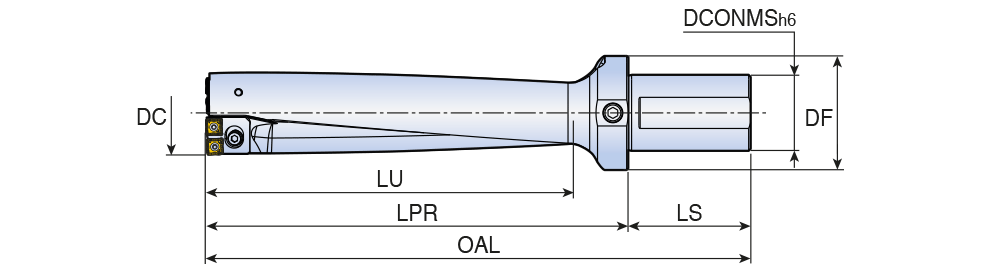

Designation	Tool sty	DCN	DCX	DCONMS	DF	LU	LPR	LS	OAL	S1		Machines	Zeff	Shank	ClssID	MIID	CICT	DC	L/D	CCFMS	CCTMS	d Range	IIC	LTA	GICAT
TOP 4051-55-50T2-09CA	INSERT TYPE ~	51.00	55.00	50.00	64.00	220.0	253.00	80.0	333.00	9.00~	~	~	1~	W ~	71E01A0608FE4 ~	SOMT 09T308 DP	4~	51.00~	4.00~	11 ~	ZYL ~	51-55 ~	IS$$1047741021497728 ~	253.00~	6306969
TOP 4056-60-50T2-11CA	INSERT TYPE ~	56.00	60.00	50.00	64.00	240.0	276.00	80.0	356.00	11.00~	~	~	1~	W ~	71E01A0608FE4 ~	SOMT 11T308 DP	4~	56.00~	4.00~	11 ~	ZYL ~	56-60 ~	IS$$955440375131362 ~	276.00~	6133590
TOP 4061-65-50T2-11CA	INSERT TYPE ~	61.00	65.00	50.00	69.00	260.0	299.00	80.0	379.00	11.00~	~	~	1~	W ~	71E01A0608FE4 ~	SOMT 11T308 DP	4~	61.00~	4.00~	11 ~	ZYL ~	61-65 ~	IS$$955440375131362 ~	299.00~	6133592
TOP 4066-70-50T2-11CA	INSERT TYPE ~	66.00	70.00	50.00	69.00	280.0	322.00	80.0	402.00	11.00~	~	~	1~	W ~	71E01A0608FE4 ~	SOMT 11T308 DP	4~	66.00~	4.00~	11 ~	ZYL ~	66-70 ~	IS$$955440375131362 ~	322.00~	6306970
TOP 4071-75-50T2-13CA	INSERT TYPE ~	71.00	75.00	50.00	74.00	300.0	345.00	80.0	425.00	13.00~	~	~	1~	W ~	71E01A0608FE4 ~	SOMT 130408 DP	4~	71.00~	4.00~	11 ~	ZYL ~	71-75 ~	IS$$993706682674101 ~	345.00~	6313964
TOP 4076-80-50T2-13CA	INSERT TYPE ~	76.00	80.00	50.00	74.00	320.0	368.00	80.0	448.00	13.00~	~	~	1~	W ~	71E01A0608FE4 ~	SOMT 130408 DP	4~	76.00~	4.00~	11 ~	ZYL ~	76-80 ~	IS$$993706682674101 ~	368.00~	6193260
