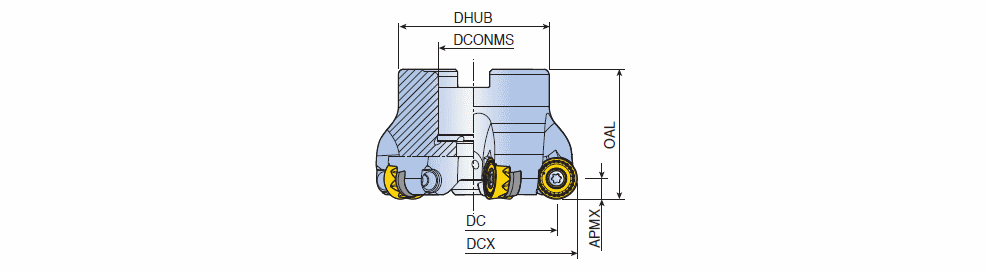

TFMRY H-R-16/20 : Carbide shim type face mills with strong positive round inserts of RYM(H)X for general profiling & general machining

Designation	Tool sty	S1	DCX	DC	CICT	DCONMS	DHUB	OAL	APMX	Arbor			Rd	R/L	KAPR	PD	Insert	Mtg. Ref	MIID	ClssID	RE	CCTMS	CCFMS	FF/RN	IIC	LTA	ZEFF	ZEFP	ZNP	GICAT	GIREM
TFMRY 463H-22R-16	FACE MILL ~	16.00~	63.00	47.00	4	22.00	47.00	50.00	8.00	A	O	0.48	9.00~	~	3.0~	RC ~	CM-RY16 ~	SH M10X1.5X30 ~	RYMX 1606-M ~	71E01A05B627B ~	8.00~	FDA ~	02 ~	RN ~	IS$$212351555988780 ~	50.00~	4~	4~	4~	3108703	Carbide shim type.
TFMRY 580H-27R-16	FACE MILL ~	16.00~	80.00	64.00	5	27.00	58.00	50.00	8.00	A	O	0.77	6.00~	~	3.0~	RC ~	CM-RY16 ~	LH M12X1.75X30 ~	RYMX 1606-M ~	71E01A05B627B ~	8.00~	FDA ~	02 ~	RN ~	IS$$212351555988780 ~	50.00~	5~	5~	5~	3108704	Carbide shim type.
TFMRY 6100H-32R-16	FACE MILL ~	16.00~	100.00	84.00	6	32.00	66.00	50.00	8.00	A	O	1.19	5.00~	~	3.0~	RC ~	CM-RY16 ~	LH M16X2.0X35 ~	RYMX 1606-M ~	71E01A05B627B ~	8.00~	FDA ~	02 ~	RN ~	IS$$212351555988780 ~	50.00~	6~	6~	6~	3110573	Carbide shim type.
TFMRY 7125H-40R-16	FACE MILL ~	16.00~	125.00	109.00	7	40.00	85.00	63.00	8.00	A	O	2.57	3.50~	~	3.0~	RC ~	CM-RY16 ~	SH M20X2.5X40 ~	RYMX 1606-M ~	71E01A05B627B ~	8.00~	FDA ~	02 ~	RN ~	IS$$212351555988780 ~	63.00~	7~	7~	7~	3110574	Carbide shim type.
TFMRY 8160H-40R-16	FACE MILL ~	16.00~	160.00	144.00	8	40.00	110.00	63.00	8.00	C	X	3.25	3.00~	~	3.0~	C ~	CM-RY16 ~	- ~	RYMX 1606-M ~	71E01A05B627B ~	8.00~	SPK ~	02 ~	RN ~	IS$$212351555988780 ~	63.00~	8~	8~	8~	3110266	Carbide shim type.
TFMRY 5100H-32R-20	FACE MILL ~	20.00~	100.00	80.00	5	32.00	66.00	50.00	10.00	A	O	1.08	6.50~	~	3.0~	RC ~	CM-RY20 ~	LH M16X2.0X35 ~	RYMX 2007-M ~	71E01A05B627B ~	10.00~	FDA ~	02 ~	RN ~	IS$$115933929173386 ~	50.00~	5~	5~	5~	3110575	Carbide shim type.
TFMRY 5125H-40R-20	FACE MILL ~	20.00~	125.00	105.00	5	40.00	85.00	63.00	10.00	A	O	2.72	4.50~	~	3.0~	C ~	CM-RY20 ~	SH M20X2.5X40 ~	RYMX 2007-M ~	71E01A05B627B ~	10.00~	FDA ~	02 ~	RN ~	IS$$115933929173386 ~	63.00~	5~	5~	5~	3108705	Carbide shim type.
TFMRY 6160H-40R-20	FACE MILL ~	20.00~	160.00	140.00	6	40.00	110.00	63.00	10.00	C	X	2.72	4.00~	~	3.0~	C ~	CM-RY20 ~	- ~	RYMX 2007-M ~	71E01A05B627B ~	10.00~	SPK ~	02 ~	RN ~	IS$$115933929173386 ~	63.00~	6~	6~	6~	3110576	Carbide shim type.
TFMRY 8200H-60R-20	FACE MILL ~	20.00~	200.00	180.00	8	60.00	130.00	63.00	10.00	C	X	5.27	2.00~	~	3.0~	C ~	CM-RY20 ~	- ~	RYMX 2007-M ~	71E01A05B627B ~	10.00~	SPK ~	02 ~	RN ~	IS$$115933929173386 ~	63.00~	8~	8~	8~	3110597	Carbide shim type.
TFMRY 9250H-60R-20	FACE MILL ~	20.00~	250.00	230.00	9	60.00	160.00	63.00	10.00	C	X	9.26	1.00~	~	3.0~	C ~	CM-RY20 ~	- ~	RYMX 2007-M ~	71E01A05B627B ~	10.00~	SPK ~	02 ~	RN ~	IS$$115933929173386 ~	63.00~	9~	9~	9~	3112395	Carbide shim type.

Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
