TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

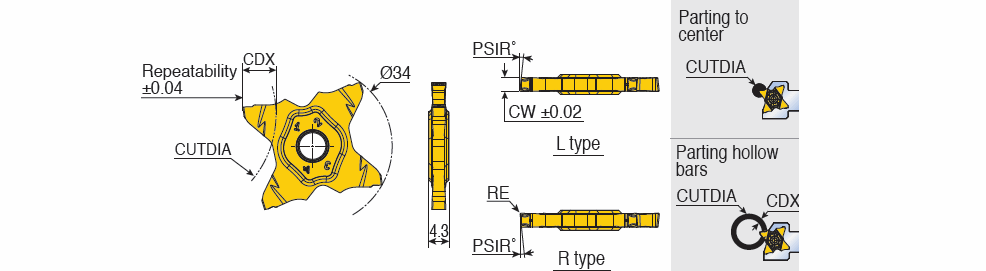

TQC 34-R/L : Unique lead angle Inserts with 4 cutting edges for Parting of hard materials in tough and general applications with maximum depth of cut 10.0 mm

Designation	CW	RE	PSIR	S1	SC	R	fg (min)	fg (max)	CB1	W	W+-toler	HAND	CEDC	COATP	CBMD	GRDMFG	IIC	GICAT	giic	Grade & Vc Click on grade for cutting speed value
TQC 34-1.50-8L	1.50	0.07	8.0	34.00~	~	0.000~	0.03	0.10	~	0.00~	0.00~	L ~	4~	PVD ~	C ~	TT9080~	IS$$767949909238224 ~	6174123	1	TT9080
TQC 34-1.50-8R	1.50	0.07	8.0	34.00~	~	0.000~	0.03	0.10	~	0.00~	0.00~	R ~	4~	PVD ~	C ~	TT9080~	IS$$767949909238224 ~	6174122	1	TT9080
TQC 34-2.00-15L	2.00	0.10	15.0	34.00~	~	0.000~	0.03	0.15	~	0.00~	0.00~	L ~	4~	PVD ~	C ~	TT9080~	IS$$767949909238224 ~	6174127	1	TT9080
TQC 34-2.00-15R	2.00	0.10	15.0	34.00~	~	0.000~	0.03	0.15	~	0.00~	0.00~	R ~	4~	PVD ~	C ~	TT9080~	IS$$767949909238224 ~	6174126	1	TT9080
TQC 34-2.00-6L	2.00	0.10	6.0	34.00~	~	0.000~	0.03	0.15	~	0.00~	0.00~	L ~	4~	PVD ~	C ~	TT9080~	IS$$767949909238224 ~	6174125	1	TT9080
TQC 34-2.00-6R	2.00	0.10	6.0	34.00~	~	0.000~	0.03	0.15	~	0.00~	0.00~	R ~	4~	PVD ~	C ~	TT9080~	IS$$767949909238224 ~	6174124	1	TT9080
TQC 34-3.00-6L	3.00	0.20	6.0	34.00~	~	0.000~	0.03	0.18	~	0.00~	0.00~	L ~	4~	PVD ~	C ~	TT9080~	IS$$767949909238224 ~	6174129	1	TT9080
TQC 34-3.00-6R	3.00	0.20	6.0	34.00~	~	0.000~	0.03	0.18	~	0.00~	0.00~	R ~	4~	PVD ~	C ~	TT9080~	IS$$767949909238224 ~	6174128	1	TT9080
