TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

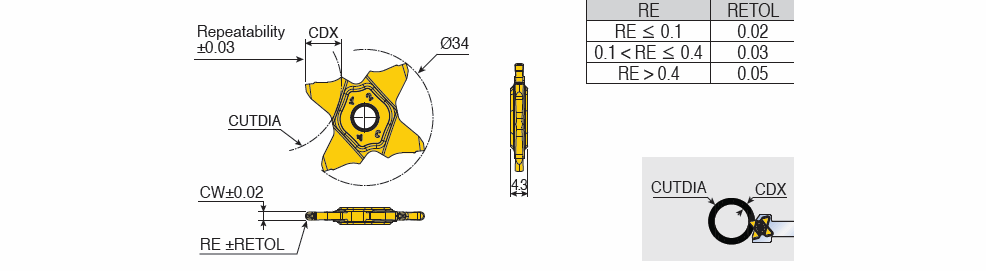

TQC 34 (Full-radius) : Full radius inserts with 4 cutting edges for Grooving of hard materials and tough applications with maximum depth of cut 10.0 mm

Designation	CW	RE	CDX	S1	SC	R	fg (min)	fg (max)	CB1	W	W+-toler	HAND	CEDC	COATP	CBMD	GRDMFG	IIC	GICAT	giic	Grade & Vc Click on grade for cutting speed value
TQC 34-2.00-1.00	2.00	1.00	9.00	34.00~	~	0.000~	0.05	0.11	~	0.00~	0.00~	N ~	4~	PVD ~	C ~	TT9080~	IS$$767949909238224 ~	6174132	1	TT9080
TQC 34-2.39-1.20	2.39	1.20	10.00	34.00~	~	0.000~	0.05	0.11	~	0.00~	0.00~	N ~	4~	PVD ~	C ~	TT9080~	IS$$767949909238224 ~	6174136	1	TT9080
TQC 34-3.00-1.50	3.00	1.50	10.00	34.00~	~	0.000~	0.06	0.12	~	0.00~	0.00~	N ~	4~	PVD ~	C ~	TT9080~	IS$$767949909238224 ~	6174144	1	TT9080
