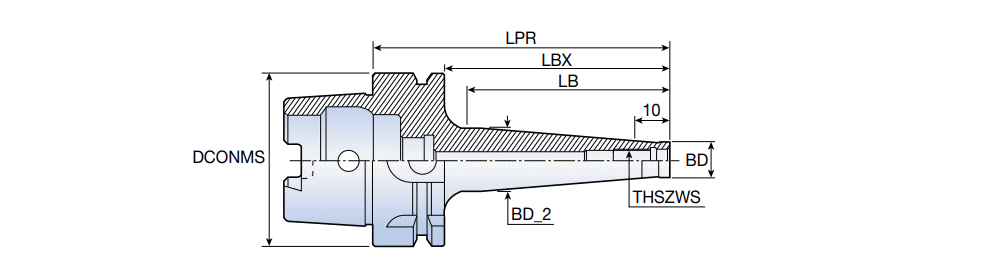

HSK A-ODP : T-FLEXTEC threaded adaptation tools with HSK DIN69893 form A taper shanks

Designation	DCONMS	THSZWS	BD	BD_2	LPR	LBX	LB		ClssID	LTA	CCTWS	CCFWS	GICAT	GIREM
HSK A 63 ODP 6X109	63	M06	9.80	23.00	109.00	83.0	75.00	0.74	71EAD3871D313 ~	109.00~	SAI ~	02 ~	4651348
HSK A 63 ODP 8X109	63	M08	13.10	23.00	109.00	83.0	75.00	0.77	71EAD3871D313 ~	109.00~	SAI ~	02 ~	4651350
HSK A 63 ODP 8X59	63	M08	13.10	15.00	59.00	33.0	25.00	0.68	71EAD3871D313 ~	59.00~	SAI ~	02 ~	4651349
HSK A 63 ODP 10X109	63	M10	18.00	28.00	109.00	83.0	75.00	0.87	71EAD3871D313 ~	109.00~	SAI ~	02 ~	4651352
HSK A 63 ODP 10X59	63	M10	18.00	20.00	59.00	33.0	25.00	0.70	71EAD3871D313 ~	59.00~	SAI ~	02 ~	4651351
HSK A 63 ODP 12X109	63	M12	21.00	31.00	109.00	83.0	75.00	0.93	71EAD3871D313 ~	109.00~	SAI ~	02 ~	4651354
HSK A 63 ODP 12X59	63	M12	21.00	24.00	59.00	33.0	25.00	0.71	71EAD3871D313 ~	59.00~	SAI ~	02 ~	4651353
HSK A 63 ODP 16X109	63	M16	29.00	34.00	109.00	83.0	75.00	1.05	71EAD3871D313 ~	109.00~	SAI ~	02 ~	4651356
HSK A 63 ODP 16X59	63	M16	29.00	34.60	59.00	33.0	25.00	0.79	71EAD3871D313 ~	59.00~	SAI ~	02 ~	4651355
HSK A 100 ODP12X 87	100	M12	23.00	30.00	87.00	58.0	50.00	2.23	71EAD3871D313 ~	87.00~	SAI ~	02 ~	4605117	Balance to G6.3 at 12,000RPM
HSK A 100 ODP12X137	100	M12	23.00	30.00	137.00	108.0	100.00	2.58	71EAD3871D313 ~	137.00~	SAI ~	02 ~	4605118	Balance to G6.3 at 12,000RPM
HSK A 100 ODP12X187	100	M12	23.00	40.00	187.00	158.0	150.00	2.86	71EAD3871D313 ~	187.00~	SAI ~	02 ~	4605119	Balance to G6.3 at 12,000RPM
HSK A 100 ODP12X237	100	M12	23.00	46.00	237.00	208.0	200.00	3.40	71EAD3871D313 ~	237.00~	SAI ~	02 ~	4605120	Balance to G6.3 at 12,000RPM
HSK A 100 ODP16X 87	100	M16	29.00	31.50	87.00	58.0	50.00	2.20	71EAD3871D313 ~	87.00~	SAI ~	02 ~	4605121	Balance to G6.3 at 12,000RPM
HSK A 100 ODP16X137	100	M16	29.00	41.50	137.00	108.0	100.00	2.68	71EAD3871D313 ~	137.00~	SAI ~	02 ~	4605122	Balance to G6.3 at 12,000RPM
HSK A 100 ODP16X187	100	M16	29.00	55.00	187.00	158.0	150.00	3.58	~	187.00~	SAI ~	02 ~	4605123	Balance to G6.3 at 12,000RPM
HSK A 100 ODP16X237	100	M16	29.00	55.00	237.00	208.0	200.00	4.07	71EAD3871D313 ~	237.00~	SAI ~	02 ~	4605124	Balance to G6.3 at 12,000RPM
