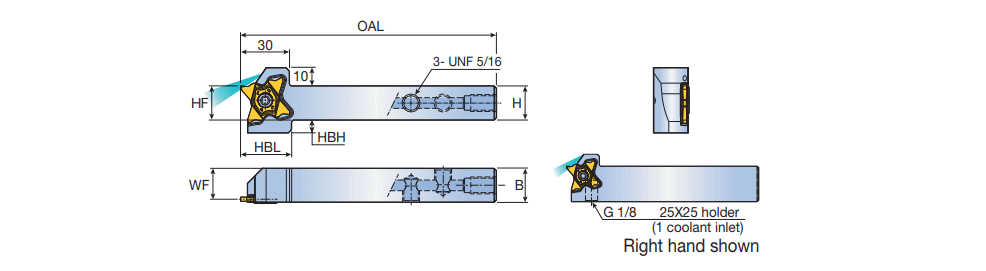

TQHR/L-34-TB : External holders for parting & deep grooving with TQ. 34 inserts and high pressure coolant
Coolant pressure: recommended 70 bar, max. up to 340 bar

Coolant pressure: recommended 70 bar, max. up to 340 bar

 COOLANT_COOLBURST
  DesignationCWN  CWX  H B WF OAL HBL HBH CNT MIID S1 Tool typ  HAND SSC  IIC GICATGIREMgiicGICODE
  TQHL 16-34-TB 1.504.0016.016.014.20135.0032.012.0UNF 5/16 TQC 34-2.00-0.20 ~34.00~SQUARE ~O ~L ~34 ~IS$$767949909238224 ~6312671 0
  TQHL 20-34-TB 1.504.0020.020.018.20135.0032.08.0G 1/8 TQC 34-2.00-0.20 ~34.00~SQUARE ~O ~L ~34 ~IS$$767949909238224 ~6312673 0
  TQHL 25-34-TB 1.504.0025.025.023.20135.0032.03.0G 1/8 TQC 34-2.00-0.20 ~34.00~SQUARE ~O ~L ~34 ~IS$$767949909238224 ~6312675 0
  TQHR 16-34-TB 1.504.0016.016.014.20135.0032.012.0UNF 5/16 TQC 34-2.00-0.20 ~34.00~SQUARE ~O ~R ~34 ~IS$$767949909238224 ~6312670 0
  TQHR 20-34-TB 1.504.0020.020.018.20135.0032.08.0G 1/8 TQC 34-2.00-0.20 ~34.00~SQUARE ~O ~R ~34 ~IS$$767949909238224 ~6312672 0
  TQHR 25-34-TB 1.504.0025.025.023.20135.0032.03.0G 1/8 TQC 34-2.00-0.20 ~34.00~SQUARE ~O ~R ~34 ~IS$$767949909238224 ~6312674 0
External Turning & Grooving is available depending on the insert
