TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

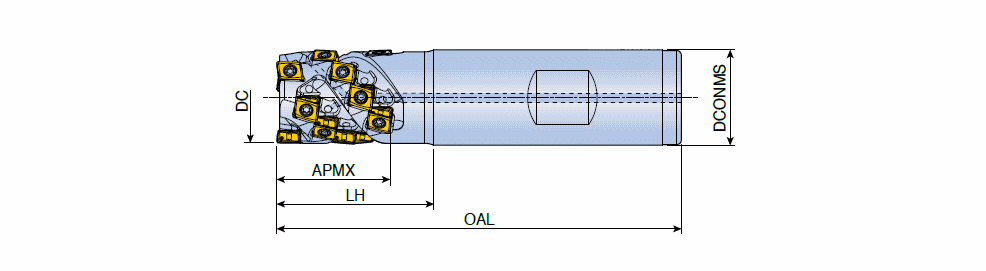

4T-TEF-05 : Extended flute end mills with strong tangential type 4 cutting edge LPK(H)U inserts

Designation	Tool sty	DC	CICT	NOF	DCONMS	OAL	LH	APMX		S1	Shank	Rd	e		PD	Insert	Pocket	KAPR	MIID	ClssID	CCTMS	CCFMS	IIC	IIC_2	LTA	ZEFF	ZEFP	GICAT
4T-TEF D16-15-W16-05	EXTENDED FLUTE ~	16.00	2	8	16.00	80.00	28.0	15.00	O ~	5.00~	W ~	1.00~	~	0.11~	C ~	TSF-LP05 ~	~	90.0~	LPHU 050204 PNR-ML	71E01A05D27A8 ~	ZYL ~	10 ~	IS$$1021751781424088 ~	IS$$1605127648008387 ~	32.00~	2~	2~	6322115
4T-TEF D20-23-W20-05	EXTENDED FLUTE ~	20.00	3	18	20.00	85.00	33.0	23.00	O ~	5.00~	W ~	0.80~	~	0.17~	C ~	TSF-LP05 ~	~	90.0~	LPHU 050204 PNR-ML	71E01A05D27A8 ~	ZYL ~	10 ~	IS$$1021751781424088 ~	IS$$1605127648008387 ~	35.00~	3~	3~	6322116
4T-TEF D25-27-W25-05	EXTENDED FLUTE ~	25.00	4	28	25.00	95.00	35.0	27.00	O ~	5.00~	W ~	0.60~	~	0.45~	C ~	TSF-LP05 ~	~	90.0~	LPHU 050204 PNR-ML	71E01A05D27A8 ~	ZYL ~	10 ~	IS$$1021751781424088 ~	IS$$1605127648008387 ~	39.00~	4~	4~	6322117

Trocoidal machining capable
