4T-TF90-R-09 : 90° Face mills with strong tangential type 4 cutting edge LPK(H)U 09 inserts

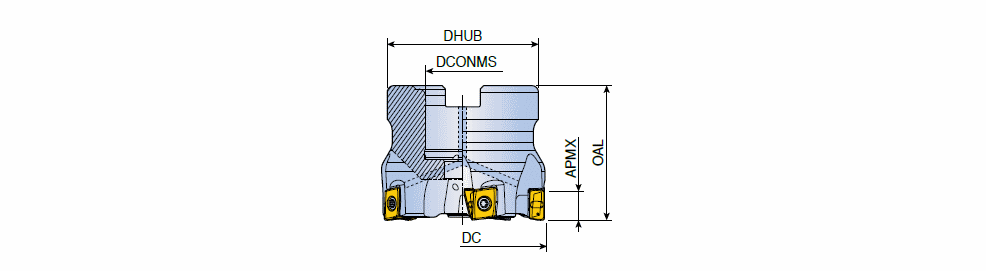

Designation	Tool sty	DC	CICT	DCONMS	DHUB	OAL	APMX		Arbor		Mtg. Ref	S1	Rd	KAPR	R/L	PD	Insert	MIID	ClssID	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT
4T-TF90-640-16R-09	FACE MILL ~	40.00	6	16.00	38.00	40.00	8.30	O	A	0.30	SH M8X30	9.00~	0.60~	90.0~	~	XF ~	TSF-LP09 ~	LPHU 090404 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$1130201403242012 ~	40.00~	6~	6~	6307666
4T-TF90-550-22R-09	FACE MILL ~	50.00	5	22.00	45.00	40.00	8.30	O	A	0.40	SH M10X30	9.00~	0.40~	90.0~	~	RF ~	TSF-LP09 ~	LPHU 090404 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$1130201403242012 ~	40.00~	5~	5~	6192361
4T-TF90-750-22R-09	FACE MILL ~	50.00	7	22.00	45.00	40.00	8.30	O	A	0.40	SH M10X30	9.00~	0.40~	90.0~	~	F ~	TSF-LP09 ~	LPHU 090404 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$1130201403242012 ~	40.00~	7~	7~	6307667
4T-TF90-1063-22R-09	FACE MILL ~	63.00	10	22.00	47.00	40.00	8.30	O	A	0.50	SH M10X30	9.00~	0.30~	90.0~	~	XF ~	TSF-LP09 ~	LPHU 090404 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$1130201403242012 ~	40.00~	10~	10~	6307669
4T-TF90-663-22R-09	FACE MILL ~	63.00	6	22.00	47.00	40.00	8.30	O	A	0.50	SH M10X30	9.00~	0.30~	90.0~	~	RF ~	TSF-LP09 ~	LPHU 090404 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$1130201403242012 ~	40.00~	6~	6~	6307668

Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
