TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

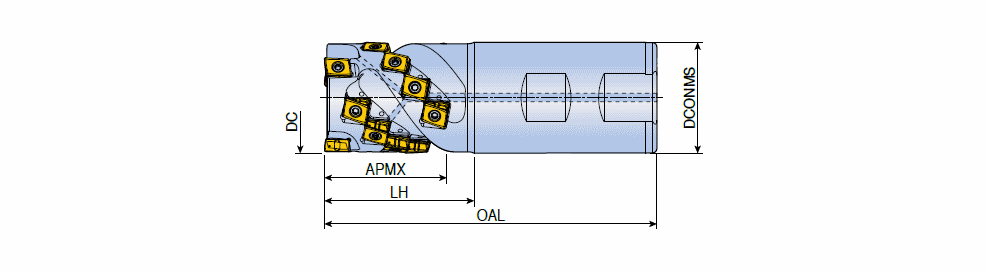

4T-TEF-09 : Extended flute end mills with strong tangential type 4 cutting edge LPK(H)U inserts

Designation	Tool sty	DC	CICT	NOF	DCONMS	OAL	LH	APMX		S1	Shank	Rd	e		PD	Insert	Pocket	KAPR	MIID	ClssID	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT
4T-TEF D25-36-W25-09	EXTENDED FLUTE ~	25.00	2	10	25.00	100.00	43.0	36.00	O ~	9.00~	W ~	1.10~	~	0.30~	C ~	TSF-LP09 ~	~	90.0~	LPHU 090404 PNR-M	71E01A05D27A8 ~	ZYL ~	10 ~	IS$$1130201403242012 ~	44.00~	2~	2~	6307632
4T-TEF D32-36-W32-09	EXTENDED FLUTE ~	32.00	3	15	32.00	105.00	44.0	36.00	O ~	9.00~	W ~	0.80~	~	0.53~	C ~	TSF-LP09 ~	~	90.0~	LPHU 090404 PNR-M	71E01A05D27A8 ~	ZYL ~	10 ~	IS$$1130201403242012 ~	45.00~	3~	3~	6307633
4T-TEF D32-43-W32-09	EXTENDED FLUTE ~	32.00	3	18	32.00	115.00	52.0	43.00	O ~	9.00~	W ~	0.80~	~	0.57~	C ~	TSF-LP09 ~	~	90.0~	LPHU 090404 PNR-M	71E01A05D27A8 ~	ZYL ~	10 ~	IS$$1130201403242012 ~	55.00~	3~	3~	6307634
4T-TEF D40-43-W40-09	EXTENDED FLUTE ~	40.00	3	18	40.00	125.00	54.0	43.00	O ~	9.00~	W ~	0.60~	~	1.01~	C ~	TSF-LP09 ~	~	90.0~	LPHU 090404 PNR-M	71E01A05D27A8 ~	ZYL ~	10 ~	IS$$1130201403242012 ~	55.00~	3~	3~	6307635
4T-TEF D40-51-W40-09	EXTENDED FLUTE ~	40.00	3	21	40.00	135.00	64.0	51.00	O ~	9.00~	W ~	0.60~	~	1.05~	C ~	TSF-LP09 ~	~	90.0~	LPHU 090404 PNR-M	71E01A05D27A8 ~	ZYL ~	10 ~	IS$$1130201403242012 ~	65.00~	3~	3~	6307636
