TaeguTec Cutting Tools - Metal Working Tools - Tooling System -

HSK E-ODP : T-FLEXTEC threaded adaptation tools with HSK DIN69893 form E taper shanks

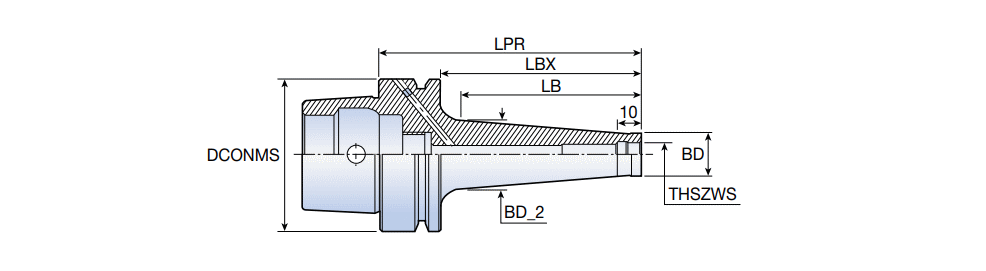

Designation	DCONMS	THSZWS	BD	BD_2	LPR	LBX	LB		ClssID	LTA	CCTWS	CCFWS	GICAT
HSK E 40 ODP 10X103	40	M10	18.00	28.00	103.00	83.0	75.00	0.30	71EAD3871D313 ~	103.00~	SAI ~	02 ~	4653164
HSK E 40 ODP 10X53	40	M10	18.00	20.00	53.00	33.0	25.00	0.26	71EAD3871D313 ~	53.01~	SAI ~	02 ~	4653163
HSK E 40 ODP 12X103	40	M12	21.00	31.00	103.00	83.0	75.00	0.51	71EAD3871D313 ~	103.00~	SAI ~	02 ~	4653166
HSK E 50 ODP 10X109	50	M10	18.00	28.00	109.00	83.0	75.00	0.65	71EAD3871D313 ~	109.00~	SAI ~	02 ~	4653168
HSK E 50 ODP 12X59	50	M12	21.00	24.00	59.00	33.0	25.00	0.48	71EAD3871D313 ~	59.00~	SAI ~	02 ~	4653169
HSK E 50 ODP 16X109	50	M16	29.00	34.00	109.00	83.0	75.00	0.85	71EAD3871D313 ~	109.00~	SAI ~	02 ~	4653172
HSK E 50 ODP 16X59	50	M16	29.00	34.00	59.00	33.0	25.00	0.56	71EAD3871D313 ~	59.00~	SAI ~	02 ~	4653171
HSK E 63 ODP 10X109	63	M10	18.00	28.00	109.00	83.0	75.00	0.96	71EAD3871D313 ~	109.00~	SAI ~	02 ~	4653281
HSK E 63 ODP 10X59	63	M10	18.00	20.00	59.00	33.0	25.00	0.75	71EAD3871D313 ~	59.00~	SAI ~	02 ~	4653280
HSK E 63 ODP 12X109	63	M12	21.00	31.00	109.00	83.0	75.00	0.96	71EAD3871D313 ~	109.00~	SAI ~	02 ~	4653283
HSK E 63 ODP 12X59	63	M12	21.00	24.00	59.00	33.0	25.00	0.77	71EAD3871D313 ~	59.00~	SAI ~	02 ~	4653282
