4T-TF90-R-14 : 90° Face mills with strong tangential type 4 cutting edge LPKU 14 inserts

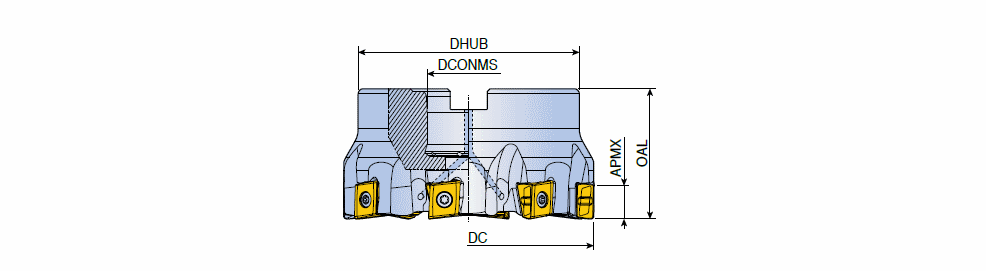

Designation	Tool sty	DC	CICT	DCONMS	DHUB	OAL	APMX		Arbor		Mtg. Ref	S1	D3	Rd	KAPR	R/L	PD	Insert	MIID	ClssID	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT
4T-TF90-440-16R-14	FACE MILL ~	40.00	4	16.00	38.00	40.00	12.50	O	A	0.30	SH M8x30	14.00~	0.00~	0.90~	90.0~	~	RF ~	TSF-LP14 ~	LPHU 140708 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$818112110509650 ~	40.00~	4~	4~	6307670
4T-TF90-450-22R-14	FACE MILL ~	50.00	4	22.00	45.00	40.00	12.50	O	A	0.30	SH M10x30	14.00~	0.00~	0.70~	90.0~	~	RC ~	TSF-LP14 ~	LPHU 140708 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$818112110509650 ~	40.00~	4~	4~	6193644
4T-TF90-650-22R-14	FACE MILL ~	50.00	6	22.00	45.00	40.00	12.50	O	A	0.30	SH M10x30	14.00~	0.00~	0.70~	90.0~	~	RF ~	TSF-LP14 ~	LPHU 140708 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$818112110509650 ~	40.00~	6~	6~	6307671
4T-TF90-563-22R-14	FACE MILL ~	63.00	5	22.00	47.00	40.00	12.50	O	A	0.50	SH M10x30	14.00~	0.00~	0.50~	90.0~	~	RC ~	TSF-LP14 ~	LPHU 140708 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$818112110509650 ~	40.00~	5~	5~	6307672
4T-TF90-863-22R-14	FACE MILL ~	63.00	8	22.00	47.00	40.00	12.50	O	A	0.50	SH M10x30	14.00~	0.00~	0.50~	90.0~	~	F ~	TSF-LP14 ~	LPHU 140708 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$818112110509650 ~	40.00~	8~	8~	6307673
4T-TF90-1080-27R-14	FACE MILL ~	80.00	10	27.00	58.00	50.00	12.50	O	A	1.20	SH M12x35	14.00~	0.00~	0.40~	90.0~	~	F ~	TSF-LP14 ~	LPHU 140708 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$818112110509650 ~	50.00~	10~	10~	6307674
4T-TF90-780-27R-14	FACE MILL ~	80.00	7	27.00	58.00	50.00	12.50	O	A	1.00	SH M12x35	14.00~	0.00~	0.40~	90.0~	~	RF ~	TSF-LP14 ~	LPHU 140708 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$818112110509650 ~	50.00~	7~	7~	6192362
4T-TF90-12100-32R-14	FACE MILL ~	100.00	12	32.00	85.00	50.00	12.50	O	A	2.10	SH M16x35	14.00~	0.00~	0.30~	90.0~	~	F ~	TSF-LP14 ~	LPHU 140708 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$818112110509650 ~	50.00~	12~	12~	6307677
4T-TF90-8100-32R-14	FACE MILL ~	100.00	8	32.00	85.00	50.00	12.50	O	A	2.00	SH M16x35	14.00~	0.00~	0.30~	90.0~	~	RF ~	TSF-LP14 ~	LPHU 140708 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$818112110509650 ~	50.00~	8~	8~	6307676
4T-TF90-10125-40R-14	FACE MILL ~	125.00	10	40.00	85.00	63.00	12.50	O	A	3.10	SH M20x40	14.00~	0.00~	0.20~	90.0~	~	RF ~	TSF-LP14 ~	LPHU 140708 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$818112110509650 ~	63.00~	10~	10~	6192363
4T-TF90-14125-40R-14	FACE MILL ~	125.00	14	40.00	85.00	63.00	12.50	O	A	3.30	SH M20x40	14.00~	0.00~	0.20~	90.0~	~	F ~	TSF-LP14 ~	LPHU 140708 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$818112110509650 ~	63.00~	14~	14~	6307678
4T-TF90-12160-40R-14	FACE MILL ~	160.00	12	40.00	110.00	63.00	12.50	X	C	4.10	-	14.00~	0.00~	0.20~	90.0~	~	RF ~	TSF-LP14 ~	LPHU 140708 PNR-M	71E01A05B627B ~	SPK ~	02 ~	IS$$818112110509650 ~	63.00~	12~	12~	6307679
4T-TF90-16160-40R-14	FACE MILL ~	160.00	16	40.00	110.00	63.00	12.50	X	C	4.30	-	14.00~	0.00~	0.20~	90.0~	~	F ~	TSF-LP14 ~	LPHU 140708 PNR-M	71E01A05B627B ~	SPK ~	02 ~	IS$$818112110509650 ~	63.00~	16~	16~	6307680
4T-TF90-14200-60R-14	FACE MILL ~	200.00	14	60.00	130.00	63.00	12.50	X	C	5.70	-	14.00~	0.00~	0.10~	90.0~	~	RF ~	TSF-LP14 ~	LPHU 140708 PNR-M	71E01A05B627B ~	SPK ~	02 ~	IS$$818112110509650 ~	63.00~	14~	14~	6307681
4T-TF90-18200-60R-14	FACE MILL ~	200.00	18	60.00	130.00	63.00	12.50	X	C	5.80	-	14.00~	0.00~	0.10~	90.0~	~	RF ~	TSF-LP14 ~	LPHU 140708 PNR-M	71E01A05B627B ~	SPK ~	02 ~	IS$$818112110509650 ~	63.00~	18~	18~	6307682

Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
