TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

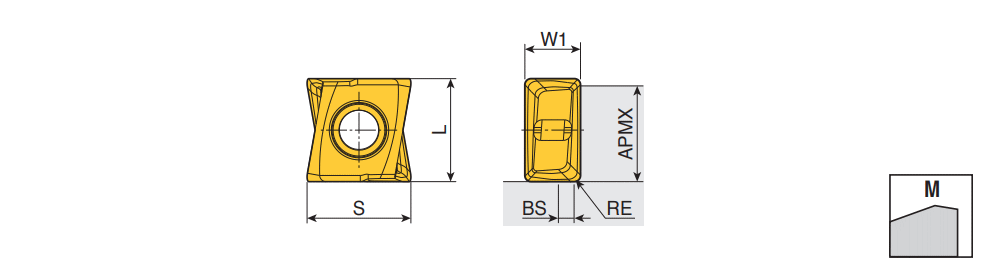

LPKU 05 PNR-M : Tangential inserts of 4 cutting edges for general applications

Designation	L	W1	S	APMX	RE	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	CEDC	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
LPKU 050204 PNR-M	5.00	2.70	5.03	4.60	0.40	5.00~	1.00	3.50	0.080	0.040	M8 ~	TSF-LP05 ~	4~	L ~	71DDA089C8D1E ~	U60 ~	M ~	TT6080~	IS$$1021751781424088 ~	LPK(H)U 05 ~	0~	6320798		3		TT8080 TT9080 TT6080
LPKU 050208 PNR-M	5.00	2.70	4.90	4.60	0.80	5.00~	1.00	3.50	0.080	0.040	M8 ~	TSF-LP05 ~	4~	L ~	71DDA089C8D1E ~	U60 ~	M ~	TT6080~	~	LPK(H)U 05 ~	0~	6254479		2		TT9080 TT6080
