LPHU 05 PNR-ML : Ground type tangential inserts of 4 cutting edges with sharp geometry

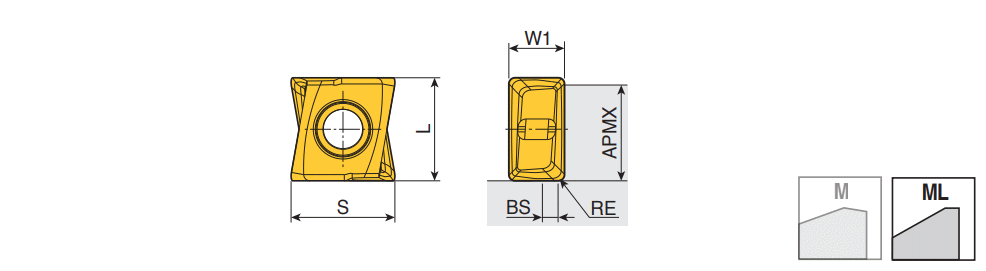

Designation	L	W1	S	APMX	RE	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	CEDC	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
LPHU 050204 PNR-ML	5.00	2.70	5.03	4.60	0.40	5.00~	1.00	3.50	0.080	0.040	M5.5 ~	TSF-LP05 ~	4~	~	71DDA089C8D1E ~	G40 ~	ML ~	TT6080~	IS$$1021751781424088 ~	LPK(H)U 05 ~	0~	6320975		3		TT8080 TT9080 TT6080
