Turning
Main Application

QH-SXUNR/L (RHINO-X) : Exchangeable screw type RHINOXTURN boring heads with XNMG 70° inserts & 93° approach angle for anti-vibration deep boring machining

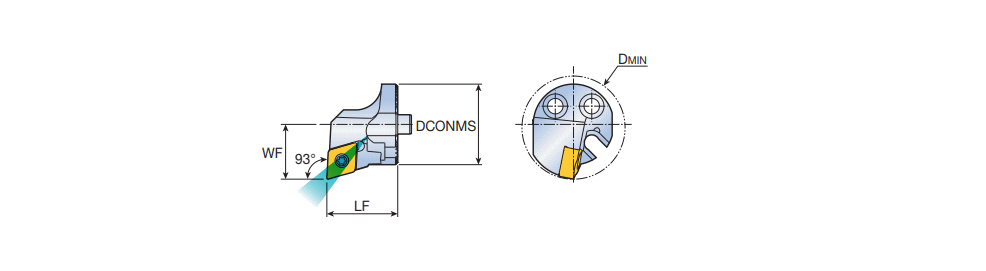

Right-hand shown

Right-hand shown

 COOLANT
  DesignationDCONMS LF WF DMIN Fig.  HAND IC S Kr KAPR CL Tool typ ClssID MIID CCTMS CCFMS LTA IIC GICATGIREMgiicGICODE
  QH25-SXUNL-0904 25.0022.0017.0032.001O ~L ~8.70~4.76~19~93.0~SCREW-RX ~ADAPTER ~71E01A0E9CBA9 ~XNMG 090404 FLP CMS ~01 ~22.00~IS$$782122684387184 ~6336429 0
  QH25-SXUNR-0904 25.0022.0017.0032.001O ~R ~8.70~4.76~19~93.0~SCREW-RX ~ADAPTER ~71E01A0E9CBA9 ~XNMG 090404 FLP CMS ~01 ~22.00~IS$$782122684387184 ~6336430 0
  QH32-SXUNL-1105 32.0032.0022.0040.002O ~L ~11.11~5.56~19~93.0~SCREW-RX ~ADAPTER ~71E01A0E9CBA9 ~XNMG 110508 MLP CMS ~01 ~32.00~IS$$919688921591508 ~6313001 0
  QH32-SXUNR-1105 32.0032.0022.0040.002O ~R ~11.11~5.56~19~93.0~SCREW-RX ~ADAPTER ~71E01A0E9CBA9 ~XNMG 110508 MLP CMS ~01 ~32.00~IS$$919688921591508 ~6313000 0
