TaeguTec Cutting Tools - Metal Working Tools - Turning -

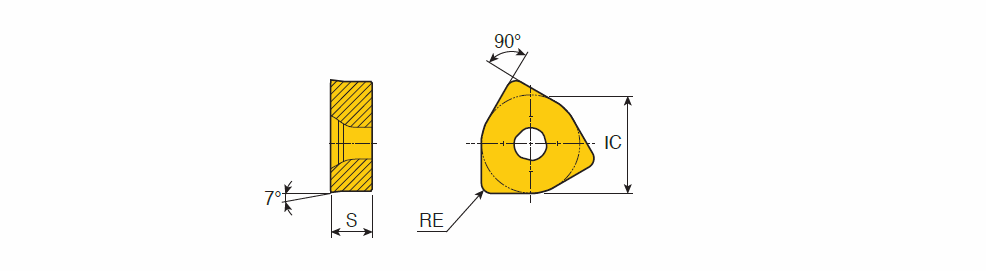

FCMX-HFP : Trigonal positive insert for bi-directional high-feed turning of alloy steel with strong cutting edge

Designation	IC	S	RE	ClssID	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
FCMX 100616-HFP	16.45	6.50	1.60	71DD68D73218C ~	HFP ~	90~	7.00~	0.50	2.50	1.00	2.50	3~	~	U ~	9.80~	F ~	CVD ~	8115B ~	3~	ISO$FC1006163NA$$16 ~	100616 ~	FCMX ~	Y ~	10 ~	6330934		3		TT8135B TT8125B TT8115B
