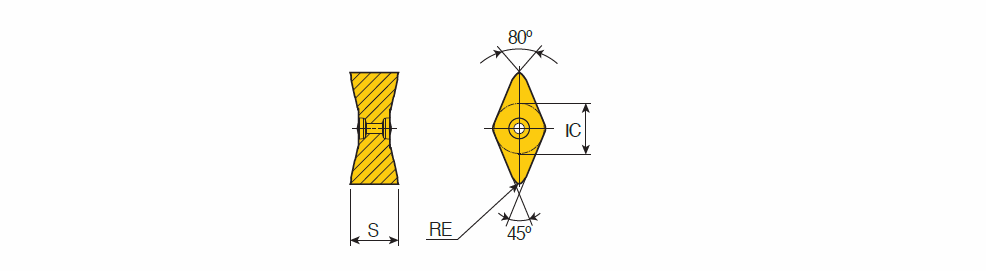

ZNMV 141008-BS : Double-sided positive 4 corner inserts with 80° corner angle for all directional & high feed turning of super alloys

Designation	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
ZNMV 141008-BS	10.50	10.00	0.80	BS ~	80~	0.00~	0.50	2.50	0.50	1.00	4~	~	U ~	14.84~	Z ~	71DDA089C8D1E ~	CVD ~	8105B ~	2~	ISO$ZN1410082NB$$08 ~	3.36.3 ~	ZNMV ~	Y ~	14 ~	6336406		5		TT3020 TT8125B TT3010 TT8115B TT8105B

ap & ft is backward turning conditions
Forward turning conditions: ap(min)=1.0, ap(max)=2.0, ft(min)=0.20, ft(max)=0.40
*Products are made by license; Prime Turning is a proprietary technology of AB Sandvik Coromant
