TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

LPKU 09 PNR-M : Tangential inserts of four cutting edges in general applications

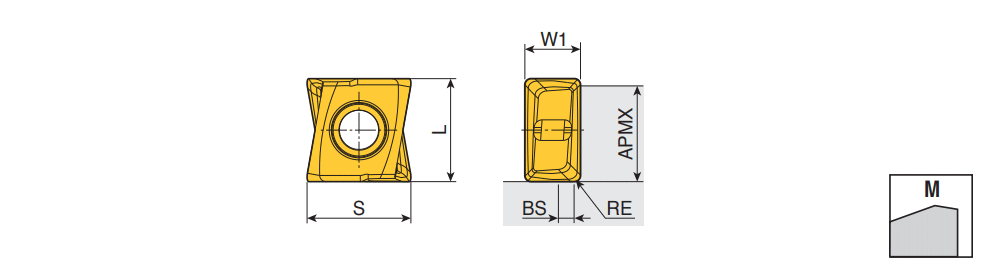

Designation	L	W1	S	APMX	BS	RE	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	CEDC	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
LPKU 090404 PNR-M	9.00	4.50	8.50	8.30	0.60	0.40	9.00~	2.50	6.00	0.150	0.060	M8 ~	TSF-LP09 ~	4~	~	71DDA089C8D1E ~	U60 ~	M ~	8525B ~	IS$$1130201403242012 ~	LPK(H)U 09 ~	0~	6322987	4	TT8080 TT8525B TT9080 TT6080
LPKU 090408 PNR-M	9.00	4.50	8.50	8.30	0.50	0.80	9.00~	2.50	6.00	0.150	0.060	M8 ~	TSF-LP09 ~	4~	~	71DDA089C8D1E ~	U60 ~	M ~	8525B ~	IS$$1130201403242012 ~	LPK(H)U 09 ~	0~	6281364	4	TT8080 TT8525B TT9080 TT6080
LPKU 090412 PNR-M	9.00	4.50	8.30	8.30	-	1.20	9.00~	2.50	6.00	0.150	0.060	M8 ~	TSF-LP09 ~	4~	~	71DDA089C8D1E ~	U60 ~	M ~	8525B ~	~	LPK(H)U 09 ~	0~	6281365	3	TT8525B TT9080 TT6080
LPKU 090416 PNR-M	9.00	4.50	8.30	8.30	-	1.60	9.00~	2.50	6.00	0.150	0.060	M8 ~	TSF-LP09 ~	4~	~	71DDA089C8D1E ~	U60 ~	M ~	8525B ~	IS$$1130201403242012 ~	LPK(H)U 09 ~	0~	6281366	4	TT8080 TT8525B TT9080 TT6080
