TaeguTec Cutting Tools - Metal Working Tools - Turning -

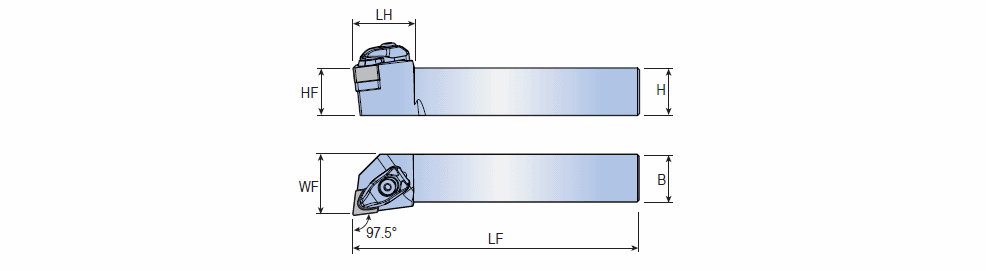

TEQNR/L-F : T-holders with 97.5° approach angle for negative 75° rhombic Ceramic without hole inserts

Designation	HF	H	B	LH	LF	d	t	Kr	KAPR	CL	Tool typ	R/L	ClssID	MIID	IIC	GICAT	GIREM	giic	GICODE
TEQNL 2525 M1307-F	25.0	25.0	25.0	32.0	150.00	12.70~	7.94~	0~	97.5~	T-HOLDER (F) ~	SQUARE ~	L ~	71E01A0E85121 ~	ENGN 130708	IS$$152606181831120 ~	6338230		0
TEQNR 2525 M1307-F	25.0	25.0	25.0	32.0	150.00	12.70~	7.94~	0~	97.5~	T-HOLDER (F) ~	SQUARE ~	R ~	71E01A0E85121 ~	ENGN 130708	IS$$152606181831120 ~	6338231		0
