LCD-8XD (Weldon Shank) : SPADERUSH head changeable drill body of large dia for high productivity with coolant holes in 8XD drilling depth

Drilling depth: 8xdiameter

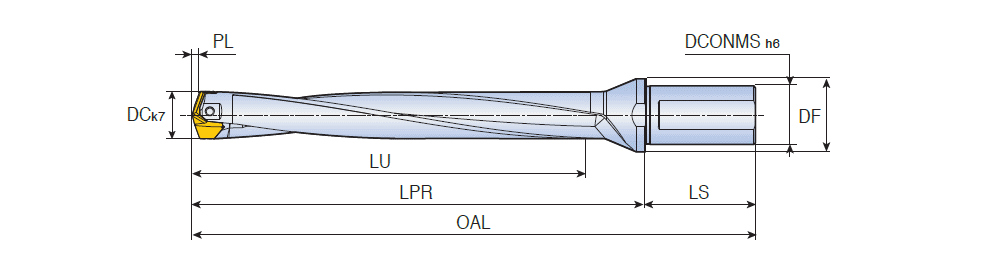

Designation	Tool sty	DCN	DCX	DCONMS	DF	LU	LPR	LS	OAL	PL	SSC	L1		Machines	Zeff	Min Tol	Max Tol	ClssID	MIID	CICT	DC	ULDR	Shank	CCFMS	CCTMS	IIC	LTA	GICAT
LCD 200-209-25T2-8D	HEAD TYPE ~	20.00	20.90	25.00	32.00	163.1	192.10	56.0	248.10	3.11	20	0.0~	~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-200-P	1~	20.00~	8.00~	W ~	11 ~	ZYL ~	IS$$113860795294950 ~	188.99~	6192285
LCD 210-219-25T2-8D	HEAD TYPE ~	21.00	21.90	25.00	32.00	171.3	200.10	56.0	256.10	3.29	21	0.0~	~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-210-P	1~	21.00~	8.00~	W ~	11 ~	ZYL ~	IS$$115033787407700 ~	196.81~	6192286
LCD 220-229-25T2-8D	HEAD TYPE ~	22.00	22.90	25.00	32.00	179.4	208.40	56.0	264.40	3.42	22	0.0~	~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-220-P	1~	22.00~	8.00~	W ~	11 ~	ZYL ~	IS$$114653327002996 ~	204.98~	6192287
LCD 230-239-25T2-8D	HEAD TYPE ~	23.00	23.90	25.00	32.00	187.6	216.40	56.0	272.40	3.60	23	0.0~	~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-230-P	1~	23.00~	8.00~	W ~	11 ~	ZYL ~	IS$$114653376449184 ~	212.80~	6192290
LCD 240-249-32T2-8D	HEAD TYPE ~	24.00	24.90	32.00	40.00	195.7	230.70	60.0	290.70	3.73	24	0.0~	~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-240-P	1~	24.00~	8.00~	W ~	11 ~	ZYL ~	IS$$114653438280010 ~	226.97~	6192291
LCD 250-259-32T2-8D	HEAD TYPE ~	25.00	25.90	32.00	40.00	203.9	238.70	60.0	298.70	3.91	25	0.0~	~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-250-P	1~	25.00~	8.00~	W ~	11 ~	ZYL ~	IS$$113222629751550 ~	234.79~	6192292
LCD 260-269-32T2-8D	HEAD TYPE ~	26.00	26.90	32.00	40.00	212.0	247.00	60.0	307.00	4.04	26	0.0~	~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-260-P	1~	26.00~	8.00~	W ~	11 ~	ZYL ~	IS$$49752012372080 ~	242.96~	6185607
LCD 270-279-32T2-8D	HEAD TYPE ~	27.00	27.90	32.00	40.00	220.2	255.00	60.0	315.00	4.22	27	0.0~	~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-270-P	1~	27.00~	8.00~	W ~	11 ~	ZYL ~	IS$$112873317413626 ~	250.78~	6185608
LCD 280-289-32T2-8D	HEAD TYPE ~	28.00	28.90	32.00	40.00	228.4	268.40	60.0	328.40	4.35	28	0.0~	~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-280-P	1~	28.00~	8.00~	W ~	11 ~	ZYL ~	IS$$113181682036884 ~	264.05~	6185609
LCD 290-299-32T2-8D	HEAD TYPE ~	29.00	29.90	32.00	40.00	236.5	276.40	60.0	336.40	4.53	29	0.0~	~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-290-P	1~	29.00~	8.00~	W ~	11 ~	ZYL ~	IS$$113149707736400 ~	271.87~	6180391
LCD 300-309-32T2-8D	HEAD TYPE ~	30.00	30.90	32.00	42.00	244.7	284.70	60.0	344.70	4.67	30	0.0~	~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-300-P	1~	30.00~	8.00~	W ~	11 ~	ZYL ~	IS$$112697484665592 ~	280.03~	6161601
LCD 310-319-32T2-8D	HEAD TYPE ~	31.00	31.90	32.00	42.00	252.9	292.70	60.0	352.70	4.85	31	0.0~	~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-310-P	1~	31.00~	8.00~	W ~	11 ~	ZYL ~	IS$$113181755743962 ~	287.85~	6185610
LCD 320-329-40T2-8D	HEAD TYPE ~	32.00	32.90	40.00	48.00	261.0	303.00	68.0	371.00	4.98	32	0.0~	~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-320-P	1~	32.00~	8.00~	W ~	11 ~	ZYL ~	IS$$113181792597510 ~	298.02~	6185611
LCD 330-339-40T2-8D	HEAD TYPE ~	33.00	33.90	40.00	48.00	269.2	311.00	68.0	379.00	5.16	33	0.0~	~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-330-P	1~	33.00~	8.00~	W ~	11 ~	ZYL ~	IS$$113181829451064 ~	305.84~	6185612
LCD 340-349-40T2-8D	HEAD TYPE ~	34.00	34.90	40.00	48.00	277.3	319.00	68.0	387.00	5.34	34	0.0~	~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-340-P	1~	34.00~	8.00~	W ~	11 ~	ZYL ~	IS$$113181872438208 ~	313.66~	6185614
LCD 350-359-40T2-8D	HEAD TYPE ~	35.00	35.90	40.00	48.00	285.4	327.40	68.0	395.40	5.44	35	0.0~	~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-350-P	1~	35.00~	8.00~	W ~	11 ~	ZYL ~	IS$$113181909291775 ~	321.96~	6185615
LCD 360-369-40T2-8D	HEAD TYPE ~	36.00	36.90	40.00	48.00	293.6	335.40	68.0	403.40	5.62	36	0.0~	~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-360-P	1~	36.00~	8.00~	W ~	11 ~	ZYL ~	IS$$113181946145348 ~	329.78~	6185616
LCD 370-379-40T2-8D	HEAD TYPE ~	37.00	37.90	40.00	48.00	301.8	343.40	68.0	411.40	5.80	37	0.0~	~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-370-P	1~	37.00~	8.00~	W ~	11 ~	ZYL ~	IS$$113181982998927 ~	337.60~	6185617
LCD 380-389-40T2-8D	HEAD TYPE ~	38.00	38.90	40.00	50.00	309.9	356.90	68.0	424.90	5.91	38	0.0~	~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-380-P	1~	38.00~	8.00~	W ~	11 ~	ZYL ~	IS$$112861761124560 ~	350.99~	6185618
LCD 390-399-40T2-8D	HEAD TYPE ~	39.00	39.90	40.00	50.00	318.1	364.90	68.0	432.90	6.09	39	0.0~	~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-390-P	1~	39.00~	8.00~	W ~	11 ~	ZYL ~	IS$$113182038253276 ~	358.81~	6185619
LCD 400-410-40T2-8D	HEAD TYPE ~	40.00	41.00	40.00	50.00	326.3	372.90	68.0	440.90	6.27	40	0.0~	~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-400-P	1~	40.00~	8.00~	W ~	11 ~	ZYL ~	IS$$113107220786714 ~	366.63~	6173416

It is recommended to make the pilot hole with a 3D holder
