TaeguTec Cutting Tools - Metal Working Tools - Turning -

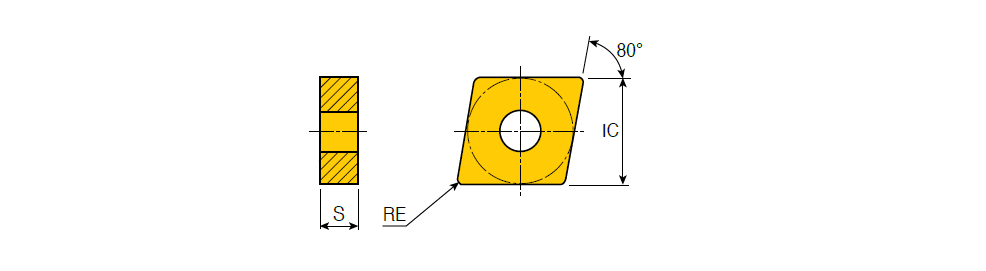

CNMG-FLP. : Negative 80° Rhombic inserts for finishing of steels with excellent chip control and low cutting force

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CNMG 120402 FLP	12.70	4.76	0.20	12.90~	FLP ~	80~	0.00~	0.10	2.00	0.06	0.18	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	8115B ~	0~	~	~	~	Y ~	12 ~	6272713	3	TT5100 TT8125B TT8115B
CNMG 120404 FLP	12.70	4.76	0.40	12.90~	FLP ~	80~	0.00~	0.20	2.00	0.08	0.30	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$CN1204042NB$$04 ~	431 FL ~	CNMG ~	Y ~	12 ~	6267550	3	TT5100 TT8125B TT8115B
CNMG 120408 FLP	12.70	4.76	0.80	12.90~	FLP ~	80~	0.00~	0.30	2.00	0.10	0.30	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$CN1204082NB$$08 ~	432 FL ~	CNMG ~	Y ~	12 ~	6307371	3	TT5100 TT8125B TT8115B
