TaeguTec Cutting Tools - Metal Working Tools - Turning -

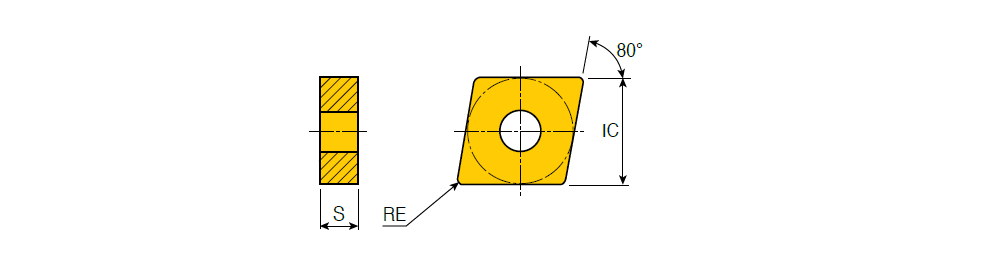

CNMG-MLP. : Negative 80° Rhombic inserts for semi-finishing to medium of steels with serrated cutting edge for good chip control in variable depth of cut

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CNMG 120404 MLP	12.70	4.76	0.40	12.90~	MLP ~	80~	0.00~	0.25	3.50	0.10	0.30	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	8105B ~	2~	~	~	~	Y ~	12 ~	6270908	4	TT5100 TT8125B TT8115B TT8105B
CNMG 120408 MLP	12.70	4.76	0.80	12.90~	MLP ~	80~	0.00~	0.50	3.50	0.10	0.40	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	8105B ~	2~	ISO$CN1204082NB$$08 ~	432 ML ~	CNMG ~	Y ~	12 ~	6275104	4	TT5100 TT8125B TT8115B TT8105B
CNMG 120412 MLP	12.70	4.76	1.20	12.90~	MLP ~	80~	0.00~	0.60	3.50	0.15	0.50	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$CN1204122NB$$12 ~	433 ML ~	CNMG ~	Y ~	12 ~	6258521	4	TT8135B TT5100 TT8125B TT8115B
