TaeguTec Cutting Tools - Metal Working Tools - Turning -

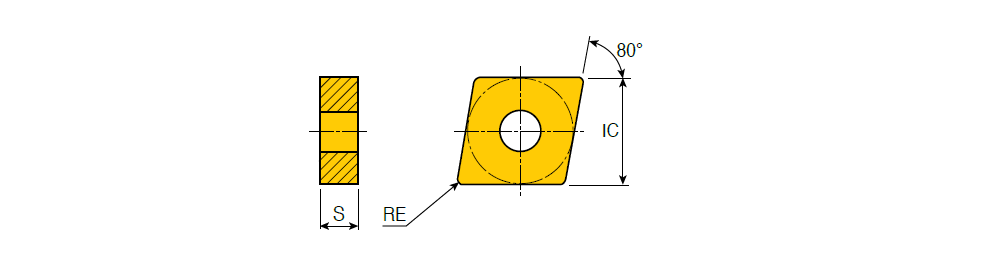

CNMG-RGP. : Negative 80° Rhombic inserts for rough machining of steels with strong cutting edge and wide chip groove

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CNMG 120408 RGP	12.70	4.76	0.80	12.90~	RGP ~	80~	0.00~	1.50	6.00	0.25	0.70	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$CN1204082NB$$08 ~	432 RG ~	CNMG ~	Y ~	12 ~	6267562	3	TT5100 TT8125B TT8115B
CNMG 120412 RGP	12.70	4.76	1.20	12.90~	RGP ~	80~	0.00~	2.00	6.00	0.25	0.70	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$CN1204122NB$$12 ~	433 RG ~	CNMG ~	Y ~	12 ~	6267564	3	TT5100 TT8125B TT8115B
CNMG 120416 RGP	12.70	4.76	1.60	12.90~	RGP ~	80~	0.00~	2.50	6.00	0.30	0.70	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	8105B ~	2~	ISO$CN1204162NB$$16 ~	434 RG ~	CNMG ~	Y ~	12 ~	6308057	5	TT8135B TT5100 TT8125B TT8115B TT8105B
CNMG 160612 RGP	15.87	6.35	1.20	23.37~	RGP ~	80~	0.00~	3.00	7.00	0.25	0.70	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	8105B ~	2~	ISO$CN1606122NB$$12 ~	543 RG ~	CNMG ~	Y ~	16 ~	6261909	3	TT8125B TT8115B TT8105B
CNMG 160616 RGP	15.87	6.35	1.60	23.37~	RGP ~	80~	0.00~	3.00	7.00	0.30	0.85	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	8105B ~	2~	ISO$CN1606162NB$$16 ~	544 RG ~	CNMG ~	Y ~	16 ~	6261930	3	TT8125B TT8115B TT8105B
CNMG 190616 RGP	19.05	6.35	1.60	12.90~	RGP ~	80~	0.00~	3.00	9.00	0.30	0.85	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$CN1906162NB$$16 ~	644 RG ~	CNMG ~	Y ~	19 ~	6308062	2	TT8125B TT8115B
