TaeguTec Cutting Tools - Metal Working Tools - Turning -

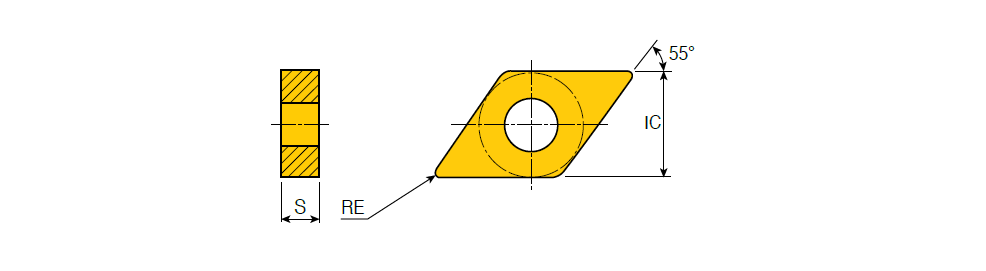

DNMG-MLP. : Negative 55° Rhombic inserts for semi-finishing to medium of steels with serrated cutting edge for good chip control in variable depth of cut

Designation	l	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
DNMG 150408 MLP	15.50~	12.70	6.35	0.80	MLP ~	55~	0.00~	0.30	3.50	0.10	0.40	4~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$DN1504082NB$$08 ~	432 ML ~	DNMG ~	Y ~	15 ~	6330916	2	TT8125B TT8115B
DNMG 150412 MLP	15.50~	12.70	6.35	1.20	MLP ~	55~	0.00~	0.35	3.50	0.15	0.50	4~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$DN1504122NB$$12 ~	433 ML ~	DNMG ~	Y ~	15 ~	6312631	2	TT8125B TT8115B
DNMG 150604 MLP	15.50~	12.70	6.35	0.40	MLP ~	55~	0.00~	0.25	3.50	0.10	0.30	4~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	8115B ~	0~	~	~	~	Y ~	15 ~	6270910	3	TT5100 TT8125B TT8115B
DNMG 150608 MLP	15.50~	12.70	6.35	0.80	MLP ~	55~	0.00~	0.50	3.50	0.10	0.40	4~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$DN1506082NB$$08 ~	442 ML ~	DNMG ~	Y ~	15 ~	6308041	3	TT5100 TT8125B TT8115B
DNMG 150612 MLP	15.50~	12.70	6.35	1.20	MLP ~	55~	0.00~	0.60	3.50	0.15	0.50	4~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$DN1506122NB$$12 ~	443 ML ~	DNMG ~	Y ~	15 ~	6308044	3	TT5100 TT8125B TT8115B
