TaeguTec Cutting Tools - Metal Working Tools - Turning -

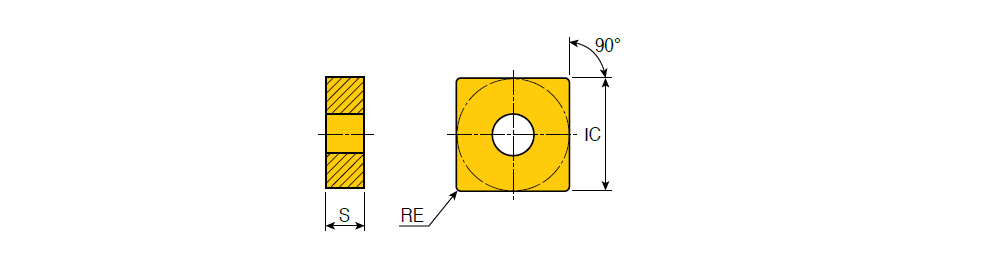

SNMG-MGP. : Negative Square inserts for medium machining of steels with reliable cutting edge and wide range of chip control

Designation	IC	S	RE	l1	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	COATP	SSC	GRDMFG	IFS	IIC	INSI	INST	ISO STD	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNMG 120404 MGP	12.70	4.76	0.40	12.70~	MGP ~	90~	0.00~	0.30	5.00	0.12	0.40	8~	~	U ~	12.70~	S ~	71DD68D829217 ~	CVD ~	12 ~	8125B ~	0~	~	~	~	Y ~	6272131	2	TT5100 TT8125B
SNMG 120408 MGP	12.70	4.76	0.80	12.70~	MGP ~	90~	0.00~	0.50	5.00	0.15	0.55	8~	~	U ~	12.70~	S ~	71DD68D829217 ~	CVD ~	12 ~	8105B ~	2~	ISO$SN1204082NB$$08 ~	432 MG ~	SNMG ~	Y ~	6306973	5	TT8135B TT5100 TT8125B TT8115B TT8105B
SNMG 120412 MGP	12.70	4.76	1.20	12.70~	MGP ~	90~	0.00~	0.60	5.00	0.17	0.55	8~	~	U ~	12.70~	S ~	71DD68D829217 ~	CVD ~	12 ~	8115B ~	0~	~	~	~	Y ~	6270915	4	TT8135B TT5100 TT8125B TT8115B
SNMG 120416 MGP	12.70	4.76	1.60	12.70~	MGP ~	90~	0.00~	0.80	5.00	0.20	0.60	8~	~	U ~	12.70~	S ~	71DD68D829217 ~	CVD ~	12 ~	8125B ~	0~	~	~	~	Y ~	6272132	2	TT5100 TT8125B
