TaeguTec Cutting Tools - Metal Working Tools - Turning -

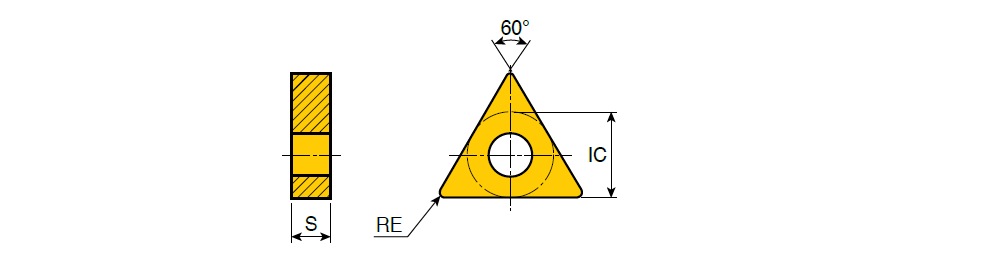

TNMG-MGP. : Negative Triangular inserts for medium machining of steels with reliable cutting edge and wide range of chip control

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	SSC	GRDMFG	IFS	IIC	INSI	INST	ISO STD	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TNMG 160404 MGP	9.52	4.76	0.40	16.50~	MGP ~	60~	0.00~	0.30	4.50	0.12	0.35	6~	~	U ~	T ~	71DD68D8446CE ~	CVD ~	16 ~	8105B ~	0~	~	~	~	Y ~	6271453	4	TT5100 TT8125B TT8115B TT8105B
TNMG 160408 MGP	9.52	4.76	0.80	16.50~	MGP ~	60~	0.00~	0.50	4.50	0.15	0.50	6~	~	U ~	T ~	71DD68D8446CE ~	CVD ~	16 ~	8105B ~	2~	ISO$TN1604082NB$$08 ~	332 MG ~	TNMG ~	Y ~	6306974	5	TT8135B TT5100 TT8125B TT8115B TT8105B
TNMG 160412 MGP	9.52	4.76	1.20	16.50~	MGP ~	60~	0.00~	0.60	4.50	0.17	0.50	6~	~	U ~	T ~	71DD68D8446CE ~	CVD ~	16 ~	8105B ~	2~	ISO$TN1604122NB$$12 ~	333 MG ~	TNMG ~	Y ~	6306975	4	TT5100 TT8125B TT8115B TT8105B
