TaeguTec Cutting Tools - Metal Working Tools - Turning -

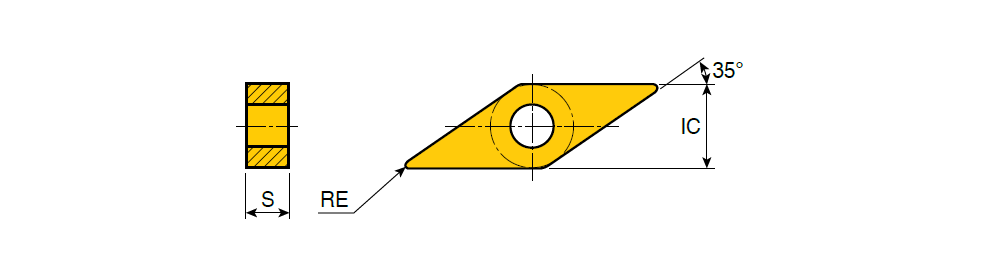

VNMG-FLP. : Negative 35° Rhombic inserts for finishing of steels with excellent chip control and low cutting force

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VNMG 160402 FLP	9.52	4.76	0.20	12.40~	FLP ~	35~	0.00~	0.10	1.50	0.06	0.18	4~	~	U ~	V ~	71DD68D301C30 ~	CVD ~	8115B ~	0~	~	~	~	Y ~	16 ~	6274160	3	TT5100 TT8125B TT8115B
VNMG 160404 FLP	9.52	4.76	0.40	12.40~	FLP ~	35~	0.00~	0.20	1.50	0.08	0.30	4~	~	U ~	V ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$VN1604042NB$$04 ~	331 FL ~	VNMG ~	Y ~	16 ~	6308034	3	TT5100 TT8125B TT8115B
VNMG 160408 FLP	9.52	4.76	0.80	12.40~	FLP ~	35~	0.00~	0.30	1.50	0.10	0.30	4~	~	U ~	V ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$VN1604082NB$$08 ~	332 FL ~	VNMG ~	Y ~	16 ~	6308036	3	TT5100 TT8125B TT8115B
VNMG 160412 FLP	9.52	4.76	1.20	12.40~	FLP ~	35~	0.00~	0.40	1.50	0.12	0.30	4~	~	U ~	V ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$VN1604122NB$$12 ~	333 FL ~	VNMG ~	Y ~	16 ~	6267663	3	TT5100 TT8125B TT8115B
