TaeguTec Cutting Tools - Metal Working Tools - Turning -

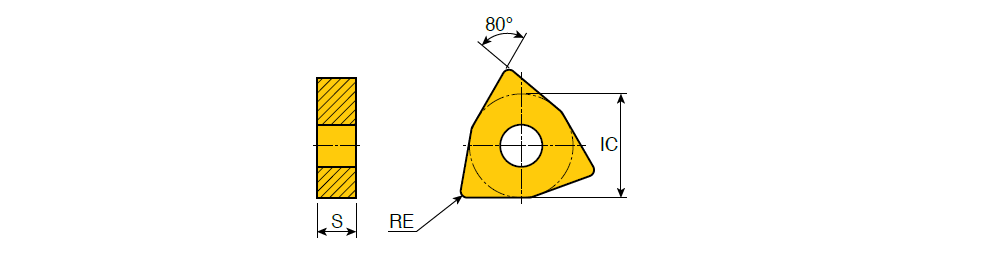

WNMG-FLP. : Negative 80° Trigon inserts for finishing of steels with excellent chip control and low cutting force

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNMG 080402 FLP	12.70	4.76	0.20	8.70~	FLP ~	80~	0.00~	0.10	2.00	0.06	0.18	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8115B ~	0~	~	~	~	Y ~	8 ~	6272722	3	TT5100 TT8125B TT8115B
WNMG 080404 FLP	12.70	4.76	0.40	8.70~	FLP ~	80~	0.00~	0.20	2.00	0.08	0.30	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8115B ~	0~	~	~	~	Y ~	8 ~	6270919	3	TT5100 TT8125B TT8115B
WNMG 080408 FLP	12.70	4.76	0.80	8.70~	FLP ~	80~	0.00~	0.30	2.00	0.10	0.30	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8115B ~	2~	ISO$WN0804082NB$$08 ~	432 FL ~	WNMG ~	Y ~	8 ~	6308038	3	TT5100 TT8125B TT8115B
