TaeguTec Cutting Tools - Metal Working Tools - Turning -

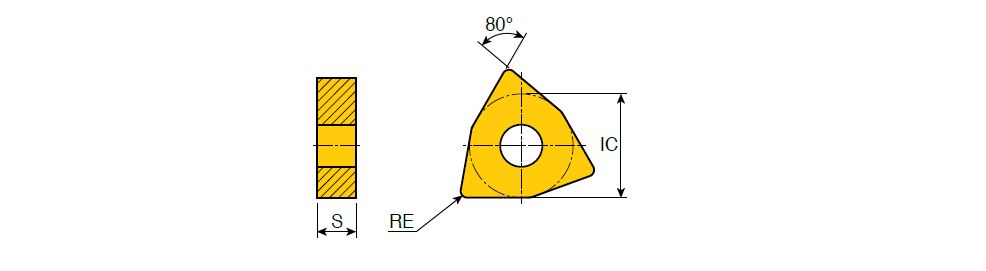

WNMG-MLP. : Negative 80° Trigon inserts for semi-finishing to medium of steels with serrated cutting edge for good chip control in variable depth of cut

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNMG 080404 MLP	12.70	4.76	0.40	8.70~	MLP ~	80~	0.00~	0.25	3.50	0.10	0.30	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8115B ~	0~	~	~	~	Y ~	8 ~	6271806	3	TT5100 TT8125B TT8115B
WNMG 080408 MLP	12.70	4.76	0.80	8.70~	MLP ~	80~	0.00~	0.50	3.50	0.10	0.40	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8115B ~	2~	ISO$WN0804082NB$$08 ~	432 ML ~	WNMG ~	Y ~	8 ~	6308052	3	TT5100 TT8125B TT8115B
WNMG 080412 MLP	12.70	4.76	1.20	8.70~	MLP ~	80~	0.00~	0.60	3.50	0.15	0.50	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8115B ~	2~	ISO$WN0804122NB$$12 ~	433 ML ~	WNMG ~	Y ~	8 ~	6267672	3	TT5100 TT8125B TT8115B
