TaeguTec Cutting Tools - Metal Working Tools - Turning -

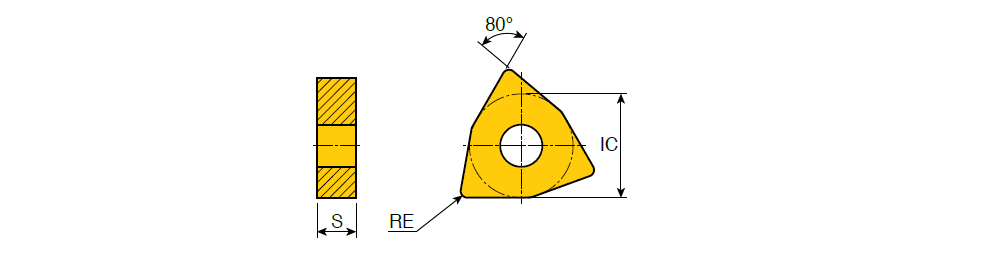

WNMG-MGP. : Negative 80° Trigon inserts for medium machining of steels with reliable cutting edge and wide range of chip control

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	SSC	GRDMFG	IFS	IIC	INSI	INST	ISO STD	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNMG 080404 MGP	12.70	4.76	0.40	8.70~	MGP ~	80~	0.00~	0.30	4.00	0.12	0.40	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8 ~	8115B ~	0~	~	~	~	Y ~	6271809	4	TT8135B TT5100 TT8125B TT8115B
WNMG 080408 MGP	12.70	4.76	0.80	8.70~	MGP ~	80~	0.00~	0.50	4.00	0.15	0.55	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8 ~	8105B ~	2~	ISO$WN0804082NB$$08 ~	432 MG ~	WNMG ~	Y ~	6300640	5	TT8135B TT5100 TT8125B TT8115B TT8105B
WNMG 080412 MGP	12.70	4.76	1.20	8.70~	MGP ~	80~	0.00~	0.60	4.00	0.17	0.55	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8 ~	8105B ~	2~	ISO$WN0804122NB$$12 ~	433 MG ~	WNMG ~	Y ~	6270595	5	TT8135B TT5100 TT8125B TT8115B TT8105B
WNMG 080416 MGP	12.70	4.76	1.60	8.70~	MGP ~	80~	0.00~	0.80	4.00	0.20	0.60	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8 ~	8115B ~	2~	ISO$WN0804162NB$$16 ~	434 MG ~	WNMG ~	Y ~	6267675	3	TT5100 TT8125B TT8115B
