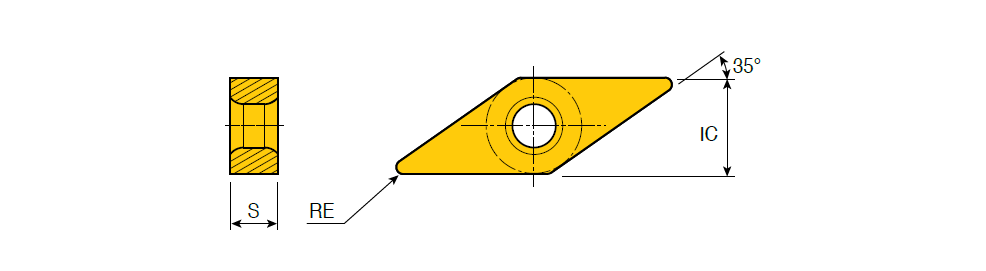

VNGX-FS-F (RHINO-SWISS) : RHINOTURN-SWISS 35° VNGX negative ground inserts for super finishing of small parts on swiss type automatic lathes

Designation	IC	S	RE	ap (min)	ap (max)	ft (min)	ft (max)	l	CBMD	alpha	AN	CEDC	Precise	Utility	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VNGX 130401M FS-F	7.94	4.76	0.10	0.20	1.00	0.03	0.12	16.60~	FS-F ~	0~	0.00~	4~	P ~	~	V ~	71DD68D301C30 ~	RHINO-TURN ~	PVD ~	TT4410~	2~	ISO$VN1304012NA$$01 ~	2.530M ~	VNGX ~	Y ~	6336438		2		TT4430 TT4410
VNGX 130402M FS-F	7.94	4.76	0.20	0.20	1.00	0.04	0.12	16.60~	FS-F ~	0~	0.00~	4~	P ~	~	V ~	71DD68D301C30 ~	RHINO-TURN ~	PVD ~	TT4410~	2~	ISO$VN1304022NA$$02 ~	2.530. ~	VNGX ~	Y ~	6324665		2		TT4430 TT4410

M: Corner radius minus tolerance (ex : 02M is 0.18)
