3P TF90-R-10 : 90° Face mills with high positive three helical cutting edges inserts of 3PK(H)T 10

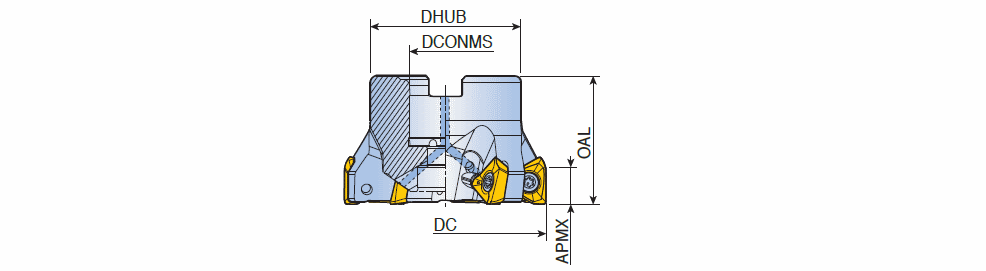

Designation	Tool sty	S3	S1	DC	CICT	DCONMS	DHUB	OAL	APMX		Arbor		Mtg. Ref	KAPR	HAND	RMPX	PD	Insert	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT
3P TF90-440-16R-10	FACE MILL ~	1 ~	10.00~	40.00	4	16.00	38.00	40.00	7.00	O	A	0.22	-	90.0~	~	1.30~	RF ~	MR-3P10 ~	71E01A05B627B ~	3PKT 100408R-M	FDA ~	02 ~	IS$$749292326746570 ~	40.00~	4~	4~	6101870
3P TF90-540-16R-10	FACE MILL ~	2 ~	10.00~	40.00	5	16.00	38.00	40.00	7.00	O	A	0.22	SH M8X1.25X30	90.0~	~	1.30~	F ~	MR-3P10 ~	71E01A05B627B ~	3PKT 100408R-M	FDA ~	02 ~	IS$$749292326746570 ~	40.00~	5~	5~	3108731
3P TF90-640-16R-10	FACE MILL ~	3 ~	10.00~	40.00	6	16.00	38.00	40.00	7.00	O	A	0.23	SH M8X1.25X30	90.0~	~	1.30~	XF ~	MR-3P10 ~	71E01A05B627B ~	3PKT 100408R-M	FDA ~	02 ~	IS$$749292326746570 ~	40.00~	6~	6~	6162647
3P TF90-450-22R-10	FACE MILL ~	4 ~	10.00~	50.00	4	22.00	38.00	40.00	7.00	O	A	0.33	-	90.0~	~	1.00~	RC ~	MR-3P10 ~	71E01A05B627B ~	3PKT 100408R-M	FDA ~	02 ~	IS$$749292326746570 ~	40.00~	4~	4~	6101871
3P TF90-650-22R-10	FACE MILL ~	5 ~	10.00~	50.00	6	22.00	45.00	40.00	7.00	O	A	0.33	SH M10X1.5X30	90.0~	~	1.00~	RF ~	MR-3P10 ~	71E01A05B627B ~	3PKT 100408R-M	FDA ~	02 ~	IS$$749292326746570 ~	40.00~	6~	6~	3108732
3P TF90-750-22R-10	FACE MILL ~	6 ~	10.00~	50.00	7	22.00	45.00	40.00	7.00	O	A	0.33	SH M10X1.5X30	90.0~	~	1.00~	F ~	MR-3P10 ~	71E01A05B627B ~	3PKT 100408R-M	FDA ~	02 ~	IS$$749292326746570 ~	40.00~	7~	7~	6162648
3P TF90-663-22R-10	FACE MILL ~	7 ~	10.00~	63.00	6	22.00	47.00	40.00	7.00	O	A	0.51	SH M10X1.5X30	90.0~	~	0.80~	RF ~	MR-3P10 ~	71E01A05B627B ~	3PKT 100408R-M	FDA ~	02 ~	IS$$749292326746570 ~	40.00~	6~	6~	6101872
3P TF90-863-22R-10	FACE MILL ~	8 ~	10.00~	63.00	8	22.00	47.00	40.00	7.00	O	A	0.50	SH M10X1.5X30	90.0~	~	0.80~	F ~	MR-3P10 ~	71E01A05B627B ~	3PKT 100408R-M	FDA ~	02 ~	IS$$749292326746570 ~	40.00~	8~	8~	3108733
3P TF90-963-22R-10	FACE MILL ~	9 ~	10.00~	63.00	9	22.00	47.00	40.00	7.00	O	A	0.50	SH M10X1.5X30	90.0~	~	0.80~	XF ~	MR-3P10 ~	71E01A05B627B ~	3PKT 100408R-M	FDA ~	02 ~	IS$$749292326746570 ~	40.00~	9~	9~	3110649

Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
