TaeguTec Cutting Tools - Metal Working Tools - Turning -

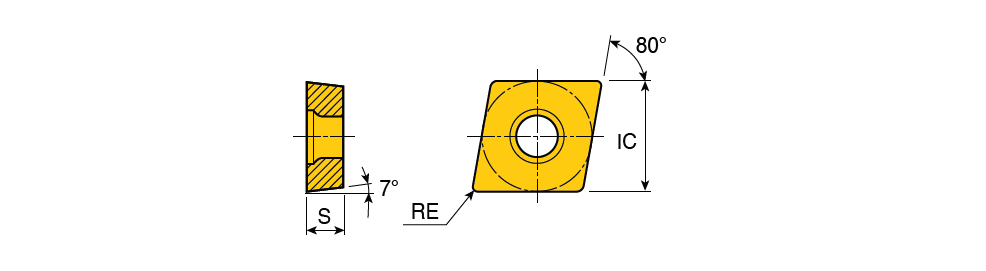

CCGT-SM-F : Positive ground 80° rhombic inserts with sharp cutting edge for general purpose of small parts on swiss type automatic lathes

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CCGT 060202M SM-F	6.35	2.38	0.20	6.40~	SM-F ~	80~	7.00~	0.20	1.50	0.02	0.12	2~	P ~	~	C ~	71DD68D301C30 ~	PVD ~	TT4410~	3~	ISO$CC0602023NB$$02 ~	21.50. ~	CCGT ~	Y ~	6335945	2	TT4430 TT4410
CCGT 09T301M SM-F	9.52	3.97	0.10	9.70~	SM-F ~	80~	7.00~	0.20	1.50	0.02	0.12	2~	P ~	~	C ~	71DD68D301C30 ~	PVD ~	TT4410~	3~	ISO$CC09T3013NB$$01 ~	32.50M ~	CCGT ~	Y ~	6335947	2	TT4430 TT4410
CCGT 09T302M SM-F	9.52	3.97	0.20	9.70~	SM-F ~	80~	7.00~	0.20	1.50	0.02	0.12	2~	P ~	~	C ~	71DD68D301C30 ~	PVD ~	TT4410~	3~	ISO$CC09T3023NB$$02 ~	32.50. ~	CCGT ~	Y ~	6335949	2	TT4430 TT4410
CCGT 09T304M SM-F	9.52	3.97	0.40	9.70~	SM-F ~	80~	7.00~	0.30	1.50	0.03	0.12	2~	P ~	~	C ~	71DD68D301C30 ~	PVD ~	TT4410~	3~	ISO$CC09T3043NB$$04 ~	32.51M ~	CCGT ~	Y ~	6335951	2	TT4430 TT4410

M: Corner radius minus tolerance (ex : 02M is 0.18)
