TaeguTec Cutting Tools - Metal Working Tools - Turning -

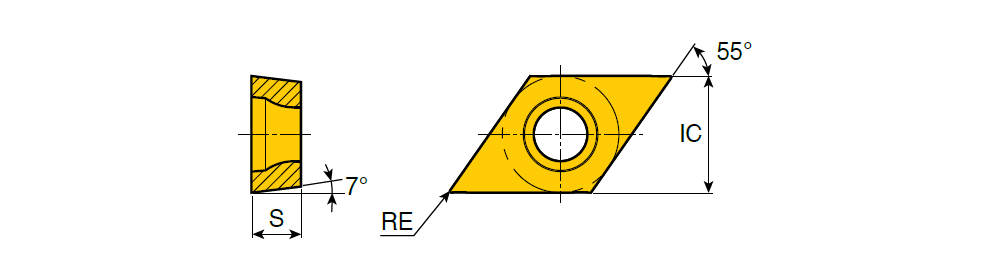

DCGT-SM-F : Positive ground 55° rhombic inserts with sharp cutting edge for general purpose of small parts on swiss type automatic lathes

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
DCGT 070201M SM-F	6.35	2.38	0.10	7.75~	SM-F ~	55~	7.00~	0.20	1.50	0.02	0.12	2~	P ~	~	D ~	71DD68D301C30 ~	PVD ~	TT4410~	3~	ISO$DC0702013NB$$01 ~	21.50M ~	DCGT ~	Y ~	6335953	2	TT4430 TT4410
DCGT 070202M SM-F	6.35	2.38	0.20	7.75~	SM-F ~	55~	7.00~	0.20	1.50	0.02	0.12	2~	P ~	~	D ~	71DD68D301C30 ~	PVD ~	TT4410~	3~	ISO$DC0702023NB$$02 ~	21.50. ~	DCGT ~	Y ~	6335955	2	TT4430 TT4410
DCGT 070204M SM-F	6.35	2.38	0.40	7.75~	SM-F ~	55~	7.00~	0.20	1.50	0.02	0.12	2~	P ~	~	D ~	71DD68D301C30 ~	PVD ~	TT4410~	3~	ISO$DC0702043NB$$04 ~	2.151M ~	DCGT ~	Y ~	6335956	2	TT4430 TT4410
DCGT 11T301M SM-F	9.52	3.97	0.10	11.60~	SM-F ~	55~	7.00~	0.20	1.50	0.02	0.12	2~	P ~	~	D ~	71DD68D301C30 ~	PVD ~	TT4410~	3~	ISO$DC11T3013NB$$01 ~	32.50M ~	DCGT ~	Y ~	6335958	2	TT4430 TT4410
DCGT 11T302M SM-F	9.52	3.97	0.20	11.60~	SM-F ~	55~	7.00~	0.20	1.50	0.02	0.12	2~	P ~	~	D ~	71DD68D301C30 ~	PVD ~	TT4410~	3~	ISO$DC11T3023NB$$02 ~	32.50. ~	DCGT ~	Y ~	6335960	2	TT4430 TT4410
DCGT 11T304M SM-F	9.52	3.97	0.40	11.60~	SM-F ~	55~	7.00~	0.20	1.50	0.02	0.12	2~	P ~	~	D ~	71DD68D301C30 ~	PVD ~	TT4410~	3~	ISO$DC11T3043NB$$04 ~	32.51M ~	DCGT ~	Y ~	6335962	2	TT4430 TT4410

M: Corner radius minus tolerance (ex : 02M is 0.18)
