TaeguTec Cutting Tools - Metal Working Tools - Turning -

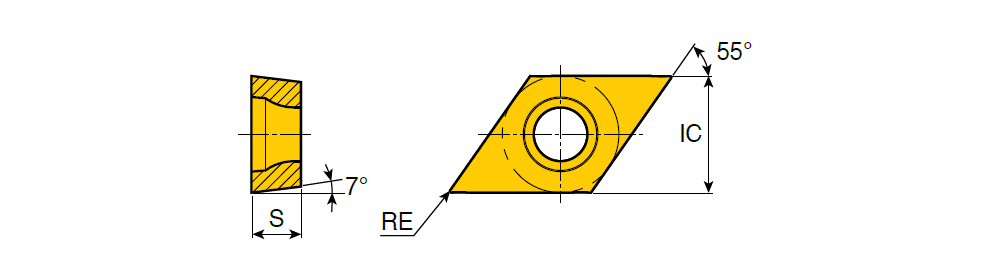

DCGT-SH-F(E) : Positive ground 55° rhombic inserts with sharp cutting edge (small honed edge) for high depth machining of small parts on swiss type automatic lathes

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
DCGT 11T302M SH-E	9.52	3.97	0.20	11.60~	SH ~	55~	7.00~	0.50	3.50	0.05	0.15	2~	P ~	~	D ~	71DD68D301C30 ~	PVD ~	TT4430~	3~	ISO$DC11T3023NB$$02 ~	32.50. ~	DCGT ~	Y ~	6322856	1	TT4430
DCGT 11T302M SH-F	9.52	3.97	0.20	11.60~	SH ~	55~	7.00~	0.50	3.50	0.05	0.15	2~	P ~	~	D ~	71DD68D301C30 ~	PVD ~	TT4410~	3~	ISO$DC11T3023NB$$02 ~	32.50. ~	DCGT ~	Y ~	6324666	2	TT4430 TT4410
DCGT 11T304M SH-F	9.52	3.97	0.40	11.60~	SH ~	55~	7.00~	0.70	3.50	0.07	0.17	2~	P ~	~	D ~	71DD68D301C30 ~	PVD ~	TT4410~	3~	ISO$DC11T3043NB$$04 ~	32.51M ~	DCGT ~	Y ~	6335961	2	TT4430 TT4410

M: Corner radius minus tolerance (ex : 02M is 0.18)
