TaeguTec Cutting Tools - Metal Working Tools - Turning -

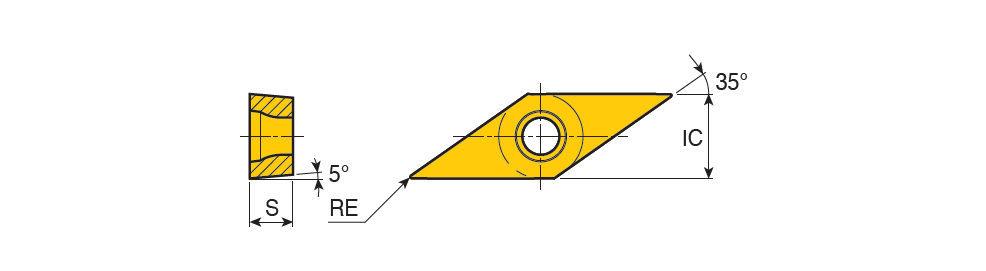

VBGT-SL-F : Positive ground 35° rhombic inserts with sharp cutting edge for super finishing of small parts on swiss type automatic lathes

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VBGT 110302M SL-F	6.35	3.18	0.20	11.10~	SL-F ~	35~	5.00~	0.02	0.20	0.02	0.10	2~	P ~	~	V ~	71DD68D301C30 ~	PVD ~	TT4410~	3~	ISO$VB1103023NB$$02 ~	220.5M ~	VBGT ~	Y ~	6335964		2		TT4430 TT4410

M: Corner radius minus tolerance (ex : 02M is 0.18)
