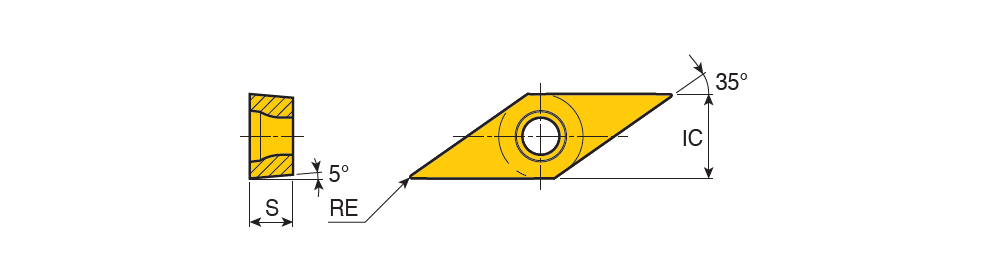

VBGT-SM-F : Positive ground 35° rhombic inserts with sharp cutting edge for general purpose of small parts on swiss type automatic lathes

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VBGT 110301M SM-F	6.35	3.18	0.10	11.10~	SM-F ~	35~	5.00~	0.20	1.50	0.02	0.12	2~	P ~	~	V ~	71DD68D301C30 ~	PVD ~	TT4410~	3~	ISO$VB1103013NB$$01 ~	220M S ~	VBGT ~	Y ~	6335963	2	TT4430 TT4410
VBGT 110302M SM-F	6.35	3.18	0.20	11.10~	SM-F ~	35~	5.00~	0.20	1.50	0.02	0.12	2~	P ~	~	V ~	71DD68D301C30 ~	PVD ~	TT4410~	3~	ISO$VB1103023NB$$02 ~	220.5M ~	VBGT ~	Y ~	6335965	2	TT4430 TT4410
VBGT 110304M SM-F	6.35	3.18	0.40	11.10~	SM-F ~	35~	5.00~	0.30	1.50	0.03	0.12	2~	P ~	~	V ~	71DD68D301C30 ~	PVD ~	TT4410~	3~	ISO$VB1103043NB$$04 ~	221M S ~	VBGT ~	Y ~	6335966	2	TT4430 TT4410

M: Corner radius minus tolerance (ex : 02M is 0.18)
