TaeguTec Cutting Tools - Metal Working Tools - Turning -

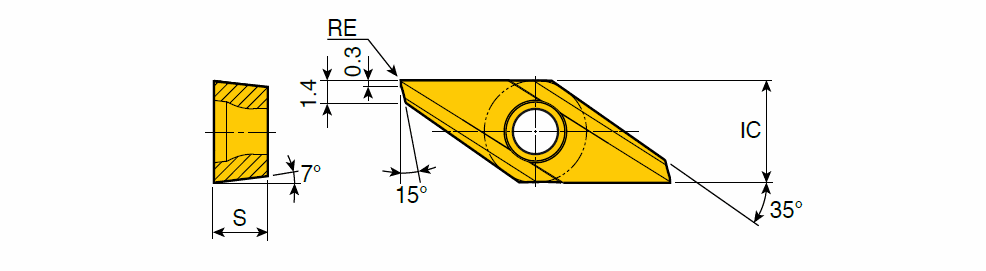

BTVC R-F : Laydown type Back turning inserts with ground chip breaker & sharp cutting edge for general purpose of small parts on swiss type automatic lathes

Designation	IC	S	RE	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	CBMD	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	GICAT	giic	Grade & Vc Click on grade for cutting speed value
BTVC 110300R-F	6.35	3.18	0.00	35~	7.00~	0.03	3.50	0.01	0.12	2~	P ~	~	B ~	71DD68D301C30 ~	R-F ~	PVD ~	TT4430~	3~	ISO$BT1103003NB$$00 ~	110300 ~	BTVC ~	Y ~	6318022	1	TT4430
BTVC 110301MR-F	6.35	3.18	0.10	35~	7.00~	0.05	3.50	0.01	0.15	2~	P ~	~	B ~	71DD68D301C30 ~	MR-F ~	PVD ~	TT4430~	3~	ISO$BT1103013NB$$01 ~	110301 ~	BTVC ~	Y ~	6318023	1	TT4430
BTVC 110302MR-F	6.35	3.18	0.20	35~	7.00~	0.10	3.50	0.01	0.15	2~	P ~	~	B ~	71DD68D301C30 ~	MR-F ~	PVD ~	TT4430~	3~	ISO$BT1103023NB$$02 ~	110302 ~	BTVC ~	Y ~	6316150	1	TT4430
