TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

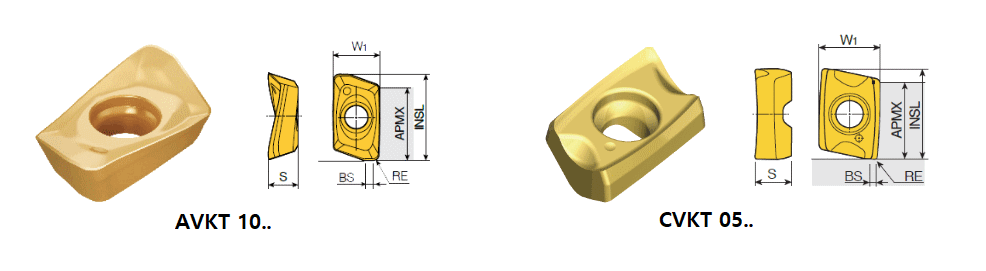

KIT WINMILL-FOLLOW : The Kit for mass production contains V-shaped CVKT or AVKT inserts for shoulder milling

Designation	INSL	W1	S	APMX	BS	RE	GICAT	giic
KIWF-A-CVKT 05-M	6.30	4.20	2.60	5.00	0.35	0.20	6338415	1
KIWF-B-CVKT 05-M	6.30	4.20	2.60	5.00	0.35	0.20	6338416	1
KIWF-C-CVKT 05-M	6.30	4.20	2.60	5.00	0.35	0.20	6338417	1
KIWF-A-AVKT 10-M	12.40	6.80	4.30	10.00	1.00	0.80	6255370	1
KIWF-B-AVKT 10-M	12.40	6.80	4.30	10.00	1.00	0.80	6255371	1
KIWF-C-AVKT 10-M	12.40	6.80	4.30	10.00	1.00	0.80	6255372	1
